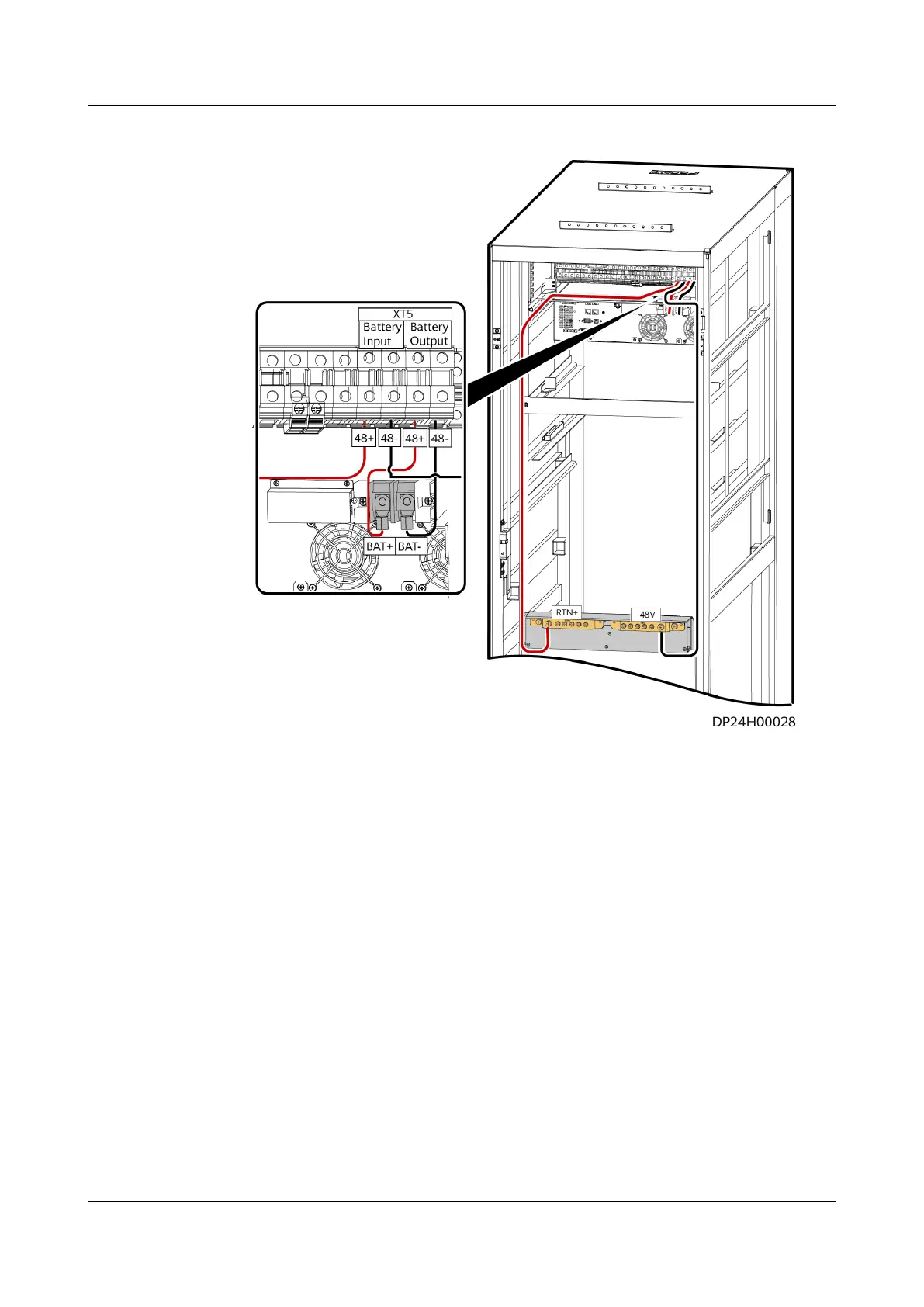

Figure 4-112 Connecting cables between the busbars, PDU, and UPS
Step 2 Connect communications cables between lithium batteries and the UPS.
1. After lithium batteries are connected in parallel, connect a signal cable to the
BMS port of the UPS.
2. A build-out resistor needs to be installed at the COM-OUT port of the lithium
battery at the end.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 144
