Huawei FusionModule500 User Manual

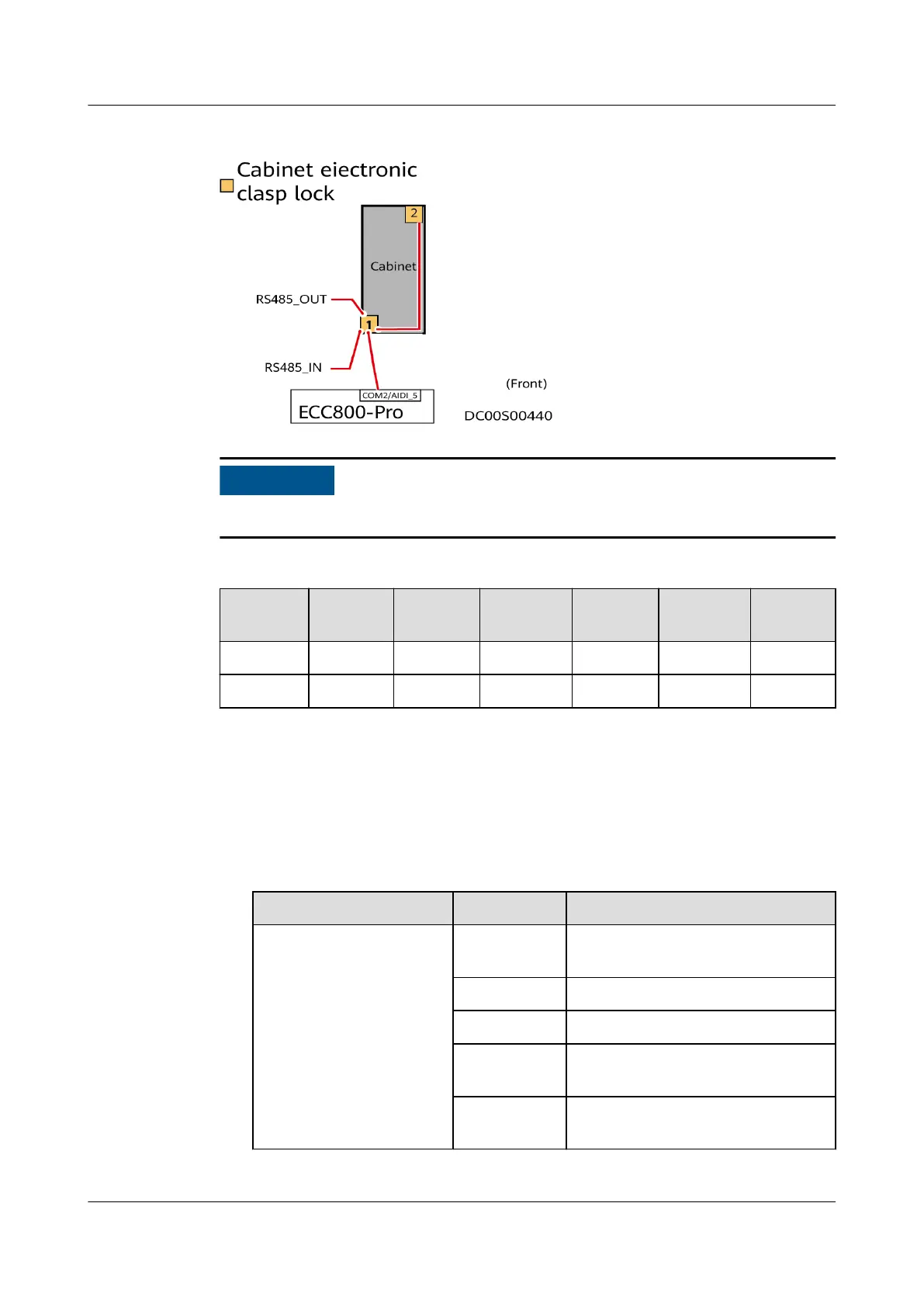

Figure 5-9 Toggle switch addresses of the cabinet electronic locks
NO TICE
The number indicates the DIP switch setting of the electronic clasp lock.
Table 5-11 Setting device addresses
Address
Toggle
Switch 1
Toggle
Switch 2
Toggle
Switch 3
Toggle
Switch 4
Toggle
Switch 5
Toggle
Switch 6
1 ON OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF
Step 4 Add the cabinet electronic clasp locks.
1. Log in to the ECC800-Pro WebUI as an administrator.
2. Create a cabinet view in Smart Module View on the home page.
3. Add a cabinet electronic clasp lock.
Table 5-12 Adding a cabinet electronic clasp lock
Path
Parameter Setting
Choose System Settings
> Device Management
and click Add Device.
Device
Attribute
Cabinet Electronic Clasp Lock
Device Type Cabinet Electronic Clasp Lock
Connect To ECC800-Pro
Communicat
ions Port
COM2
Device
Address
Enter the actual device address of
the cabinet electronic clasp lock.
FusionModule500 Smart Mini Data Center
User Manual 5 Power-On Commissioning
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 177
