Saturation
Temperatu
re (°C)
Gauge
Pressure
(MPa)
Saturation
Temperatu
re (°C)
Gauge
Pressure
(MPa)
Saturation
Temperatu
re (°C)
Gauge
Pressure
(MPa)
16 1.19 35 2.04 54 3.26
17 1.23 36 2.1 55 3.34
18 1.27 37 2.15 - -
NO TE
1 MPa ≈ 10 bar ≈ 145 psi ≈ 10.2 kgf/cm
2
Oil Trap
NO TICE
If the outdoor unit is installed 6 m higher than the indoor unit, install an oil trap
every 6 m to 7.5 m on the gas pipe to ensure that the compressor oil
owing from
the vertical gas pipe to the oil trap can be quickly taken away when the
compressor restarts after shutdown.

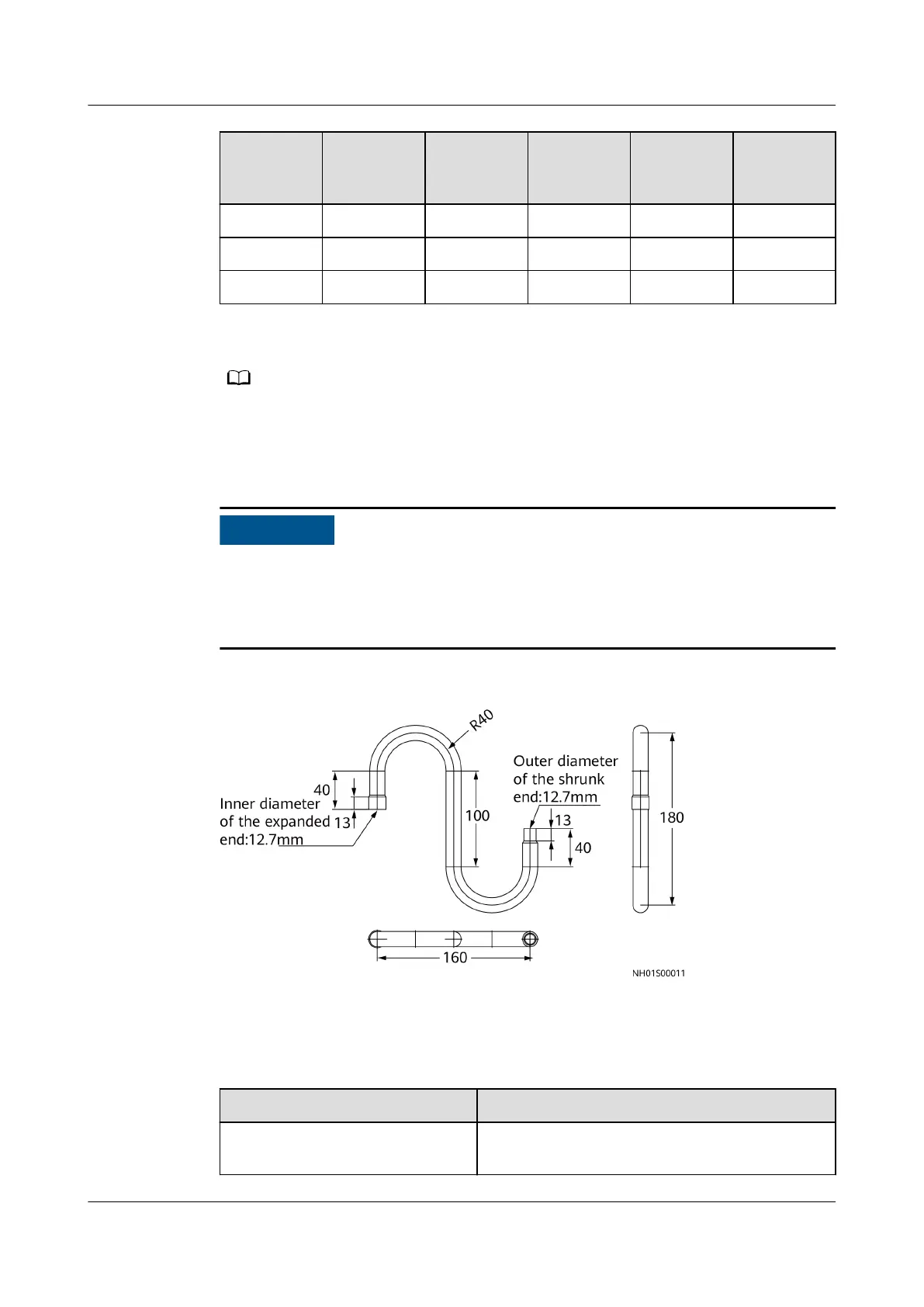

Figure 4-10 Oil trap (unit: mm)
(Optional) Gas Pipe, Liquid Pipe, and Thermal Insulation Foam
Table 4-6 Specications
Item
Specications
Gas pipe 3/8 inch (9.52 mm), pressure withstanding
capacity ≥ 4.5 MPa
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 73
