Quidway S8500 Series Routing Switches Chapter 6 Switch Monitoring and Maintenance
Huawei Technologies Proprietary
6-4
Caution:
The PSU of the S8500 series is hot-swappable.
When installing or replacing a PSU while power is being supplied, you must take care in
the operation procedures and safety with electricity. Do not touch any naked wires,
terminals or any parts of the product marked with a dangerous voltage label to avoid
bodily injury.
I. Removing AC PSU (S8505 as example)
Step 1: Put the power switch on the PSU from the ON position into the OFF position.
Step 2: Pull right the clamp holding the power cord connector and unplug the power
cord.
Step 3: Unscrew the captive screws on the both sides of the PSU panel with a flathead
screwdriver.
Step 4: Hold the handle of the PSU and pull the PSU gently out of the chassis along the
guides.

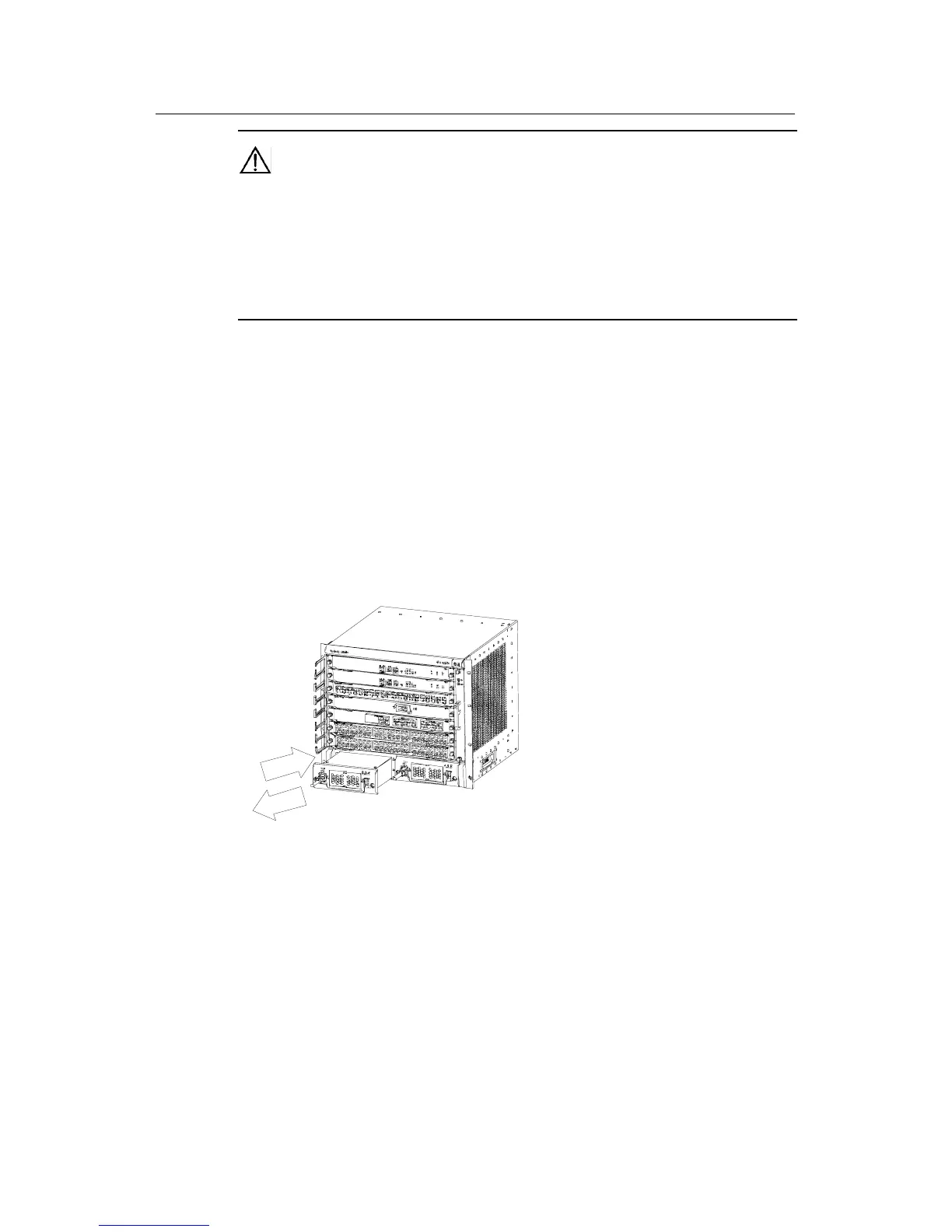

Figure 6-1 Remove and install the AC PSU
You can remove the AC PSU on the S8508 and S8512 in the same way as on the
S8505.
