Installation Manual
Quidway S8500 Series Routing Switches Appendix A Engineering Labels for Cables
Huawei Technologies Proprietary
A-7
Cable
Stick side
Fold up
Cable
Stick side
Fold to right

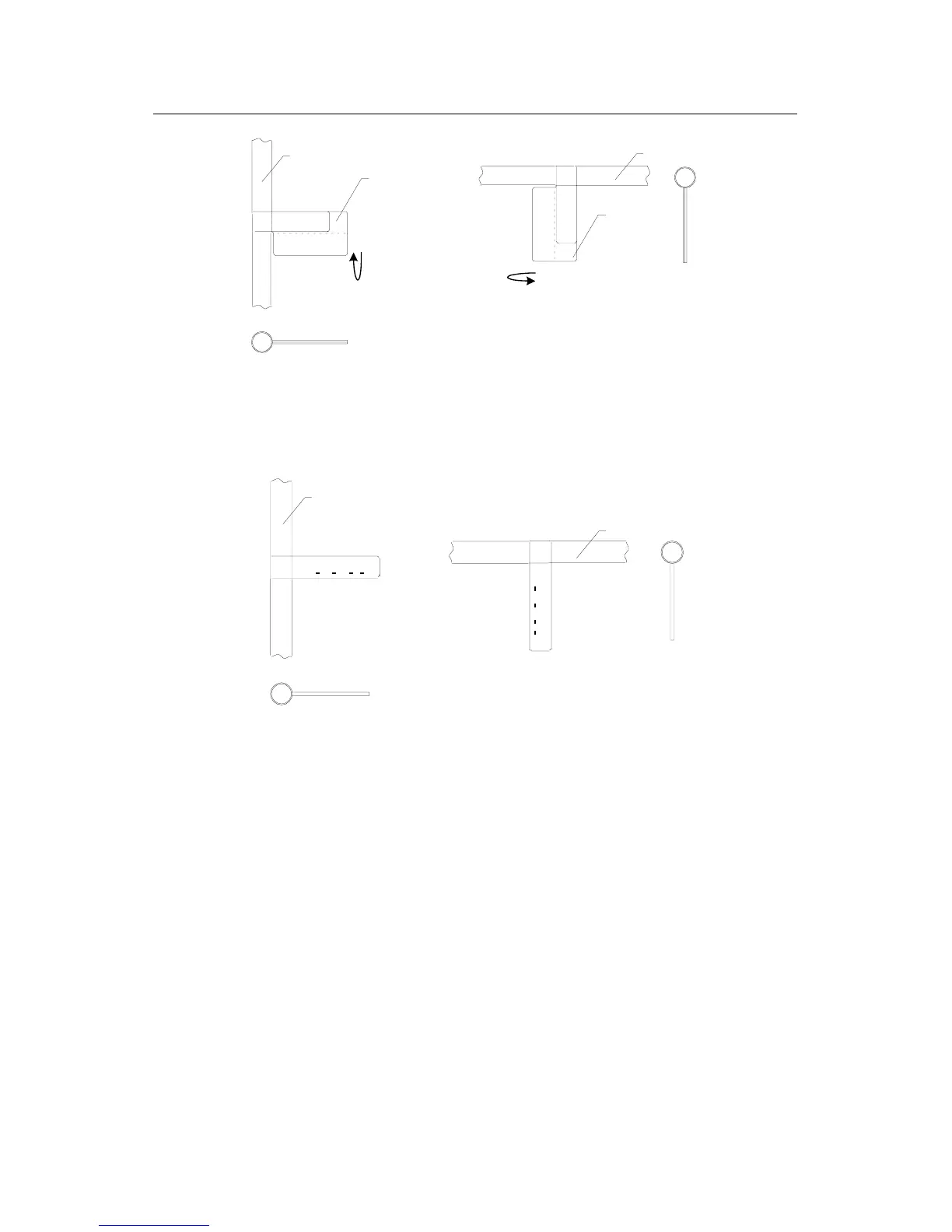

Figure A-6 Fold up the label
3) After the printed part of the label has been folded up, the narrow part of the label
should be covered completely, as shown in Figure A-7.
TO:
A03 33 33 33 33
Cable
TO:
A03 33 33 33 33
Cable
Figure A-7 Appearance of affixed labels on signal cables
II. Affixing the label to the power cable
Remove the label from the bottom page, then affix it to the identification plate on the
cable tie. The label should be stuck to the rectangular flute, and should be stuck to only
one side of the identification plate. Make sure to affix the labels on the same side of the
identification plates. The cable ties are bundled at 2cm from the connectors, and other
positions are allowed in special circumstances.
Cable ties should be bundled on both ends of a cable. After the bundling, the finished
identification plate should be on top of the cable in horizontal cabling, or on the right
side of the cable in vertical cabling. Make sure the label is facing out, as shown in
Figure A-8.
To Next Page
