Installation Manual
Quidway S8500 Series Routing Switches Chapter 2 LPU Modules
Huawei Technologies Proprietary
2-25
2.17.2 Panel and LEDs

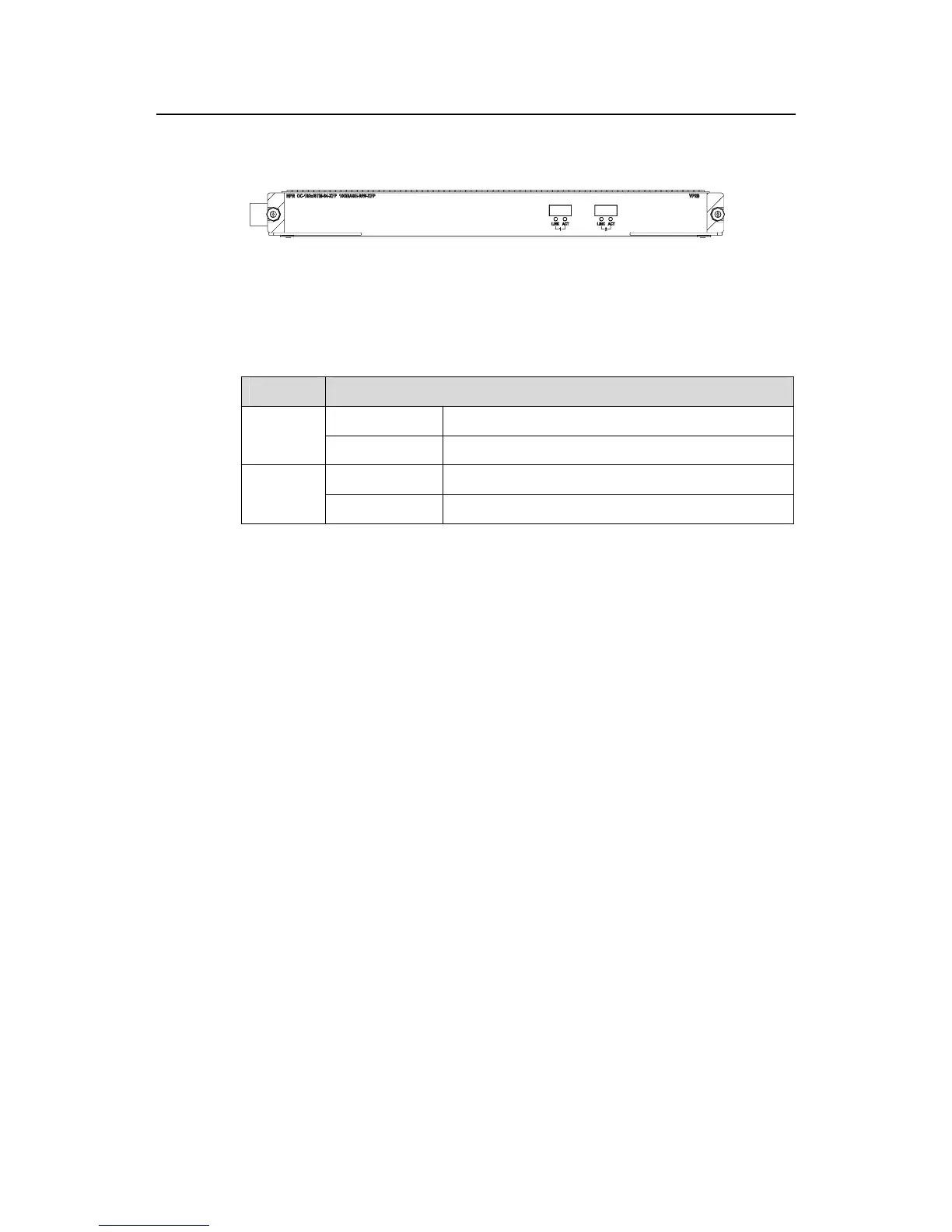

Figure 2-20 VP2 module panel
The VP2 module has two LEDs for each port on its panel.
Table 2-45 Port LEDs of VP2 module
LED Status
OFF The link is normal.
ALM
ON No link is present or the link is faulty.
OFF No packets are transmitted/received on the port.
ACT
ON Packets are being transmitted/received on the port.
2.17.3 Matching Cable
The VP2 module provides two 10 Gbps XFP optical ports. For more details about XFP
optical modules (to provide 2.5 Gbps POS optical ports), see Table 2-3.
