Installation Manual
Quidway S8500 Series Routing Switches Appendix A Engineering Labels for Cables
Huawei Technologies Proprietary
A-18
II. Example of the label

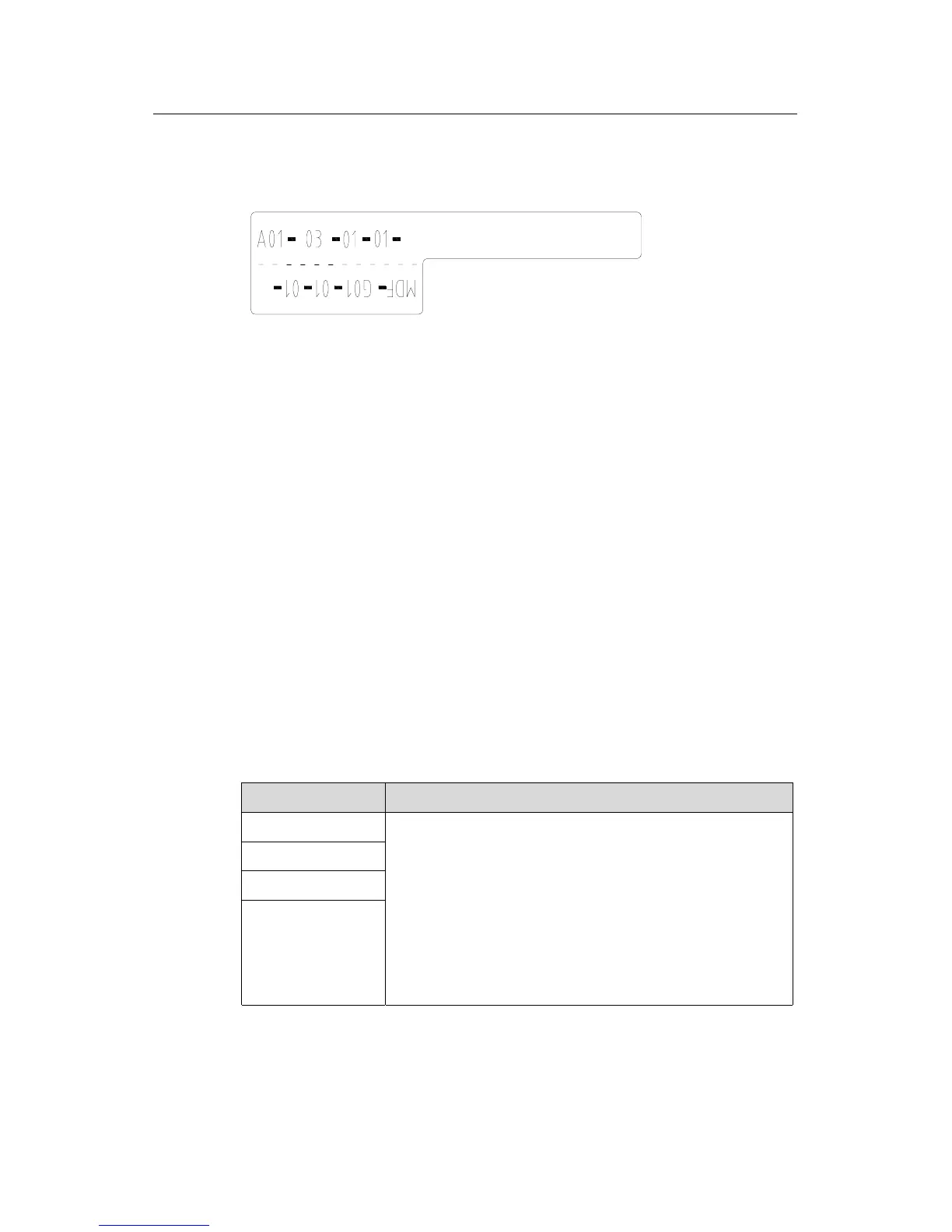

Figure A-16 shows the label on the subscriber cable.
TO:
Figure A-16 Example of the label on the subscriber cable
“A01-03-01-01” indicates that local end of the subscriber cable is connected with
Terminal 01 on Slot 1, Frame 03 of the cabinet on Row A, Column 01 in the machine
room.
“MDF-G01-01-01” indicates that the opposite end of the label is connected with the
terminal on Row 01, Column 01 of the MDF on Row G, Column 01 in the machine room.
A.7 Engineering Labels for Power Cables
A.7.1 Labels for DC Power Cables
The labels are affixed to the DC cables that provide power for the cabinets, and the
protection grounding cables, including the -48V, PGND, and BGND cables. The labels
for DC power cables are affixed to one side of the identification plates on cable ties.
I. Meaning of the label
Table A-9 shows the information carried on the labels for the DC power cables:
Table A-9 Information on labels affixed to the DC power cables
Content Meaning
MN(BC)--48V1
MN(BC)--48V2
MN(BC)-BGND
MN(BC)-PGND
MN(BC): BC is written right under MN.
On the loaded cabinet side, only MN is used to identify the
cabinet.
On the power cabinet side, MN identifies the row and column
number of the power distribution equipment like the control
cabinet and distribution box, BC identifies the row and
column number of the -48V connecter (if there is no row
number or column number, or the connecter can be identified
without them, BC can be omitted). BGND and PGND have no
row and column number for identification.
The label only carries location information about the opposite equipment, the control
cabinet or the distribution box, while information of the local end is not necessary. Table
