Installation Manual
Quidway S8500 Series Routing Switches Appendix B Installation of B68 Cabinet
Huawei Technologies Proprietary
B-30
III. Installing insulating parts and fixing anchor plate
First put the insulating washer under the anchor plate (Two insulating washers are
required for one anchor plate) and align it with T nut in the upper trough of the slide rail.
Screw the M12 X 35 bolt into T nut through the anchor plate. At the time, it should be
noted that such related accessories as insulating covering and big flat washer must be
installed according to part A in Figure B-33. Then, fasten the bolt force moment to 45
Nm.

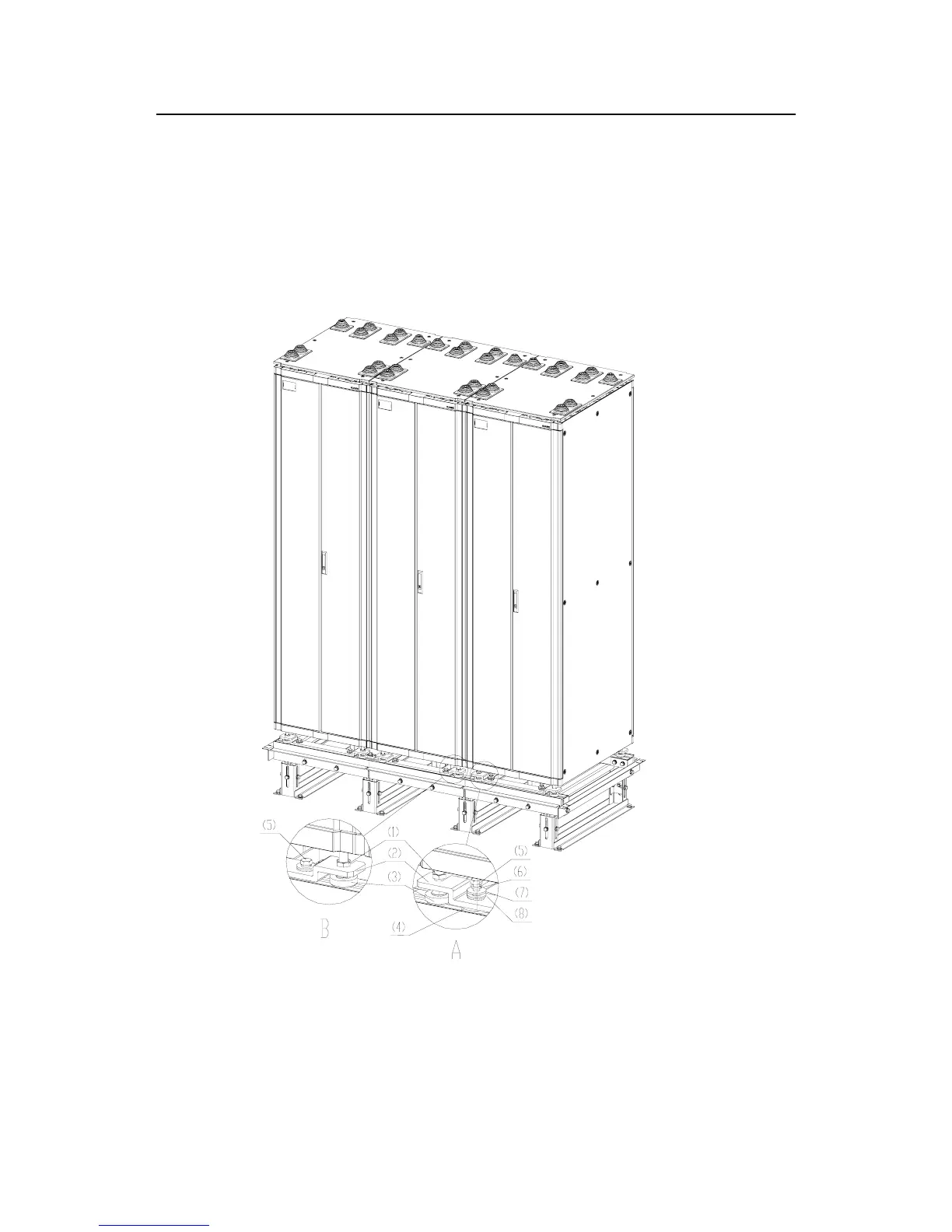

(1) Retaining nut of anchor plate (2) Anchor plate of the B68-22 cabinet
(3) Cabinet M16 foot (4) Insulating washer of anchor plate
(5) Bolt M12X35 (6) Spring washer Φ12
(7) Big flat washer Φ12 (8) Insulating covering
Figure B-33 Fastening of anchor plate of the B68-22 cabinet
