II. Installing quakeproof lever
Connect the angle connector and channel beam with the quakeproof angle plate or the
ceiling of the equipment room according to Figure B-38. Figure B-39 shows the
quakeproof reinforcement for multiple cabinets.
Caution:
z The top cover of the cabinet must be removed before the installation (as shown in
Figure B-36).
z Insulating washer or plate must be installed during the quakeproof reinforcement.
(1) Quakeproof angle plate

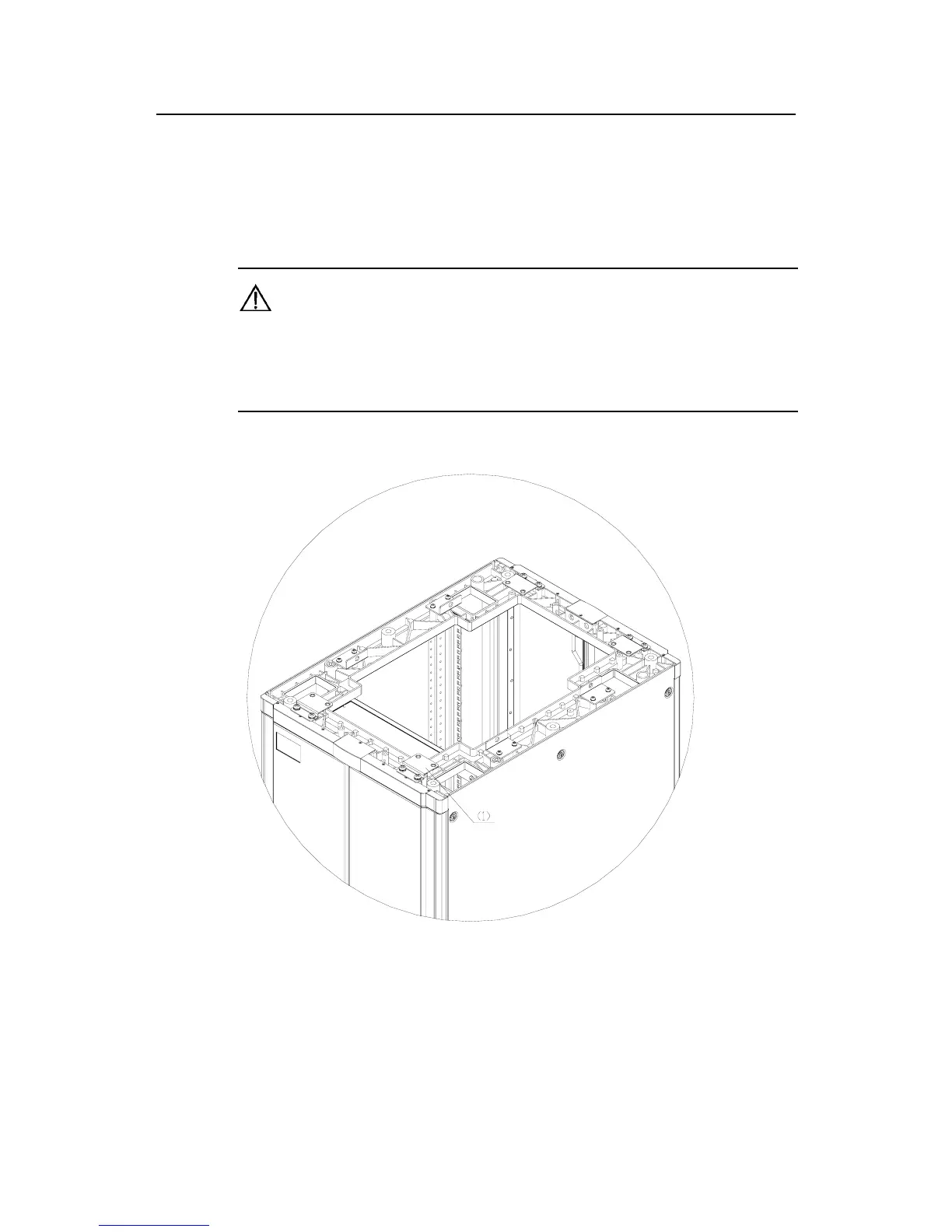

Figure B-36 Position of quakeproof angle plate before reinforcement
