Huawei Quidway S8500 Series Installation Manual

Installation Manual
Quidway S8500 Series Routing Switches Chapter 2 LPU Modules
Huawei Technologies Proprietary
2-16
Attribute GV48
Number of ports 48
Connector RJ-45
Rate 10/100/1000 Mbps
2.11.2 Panel and LEDs

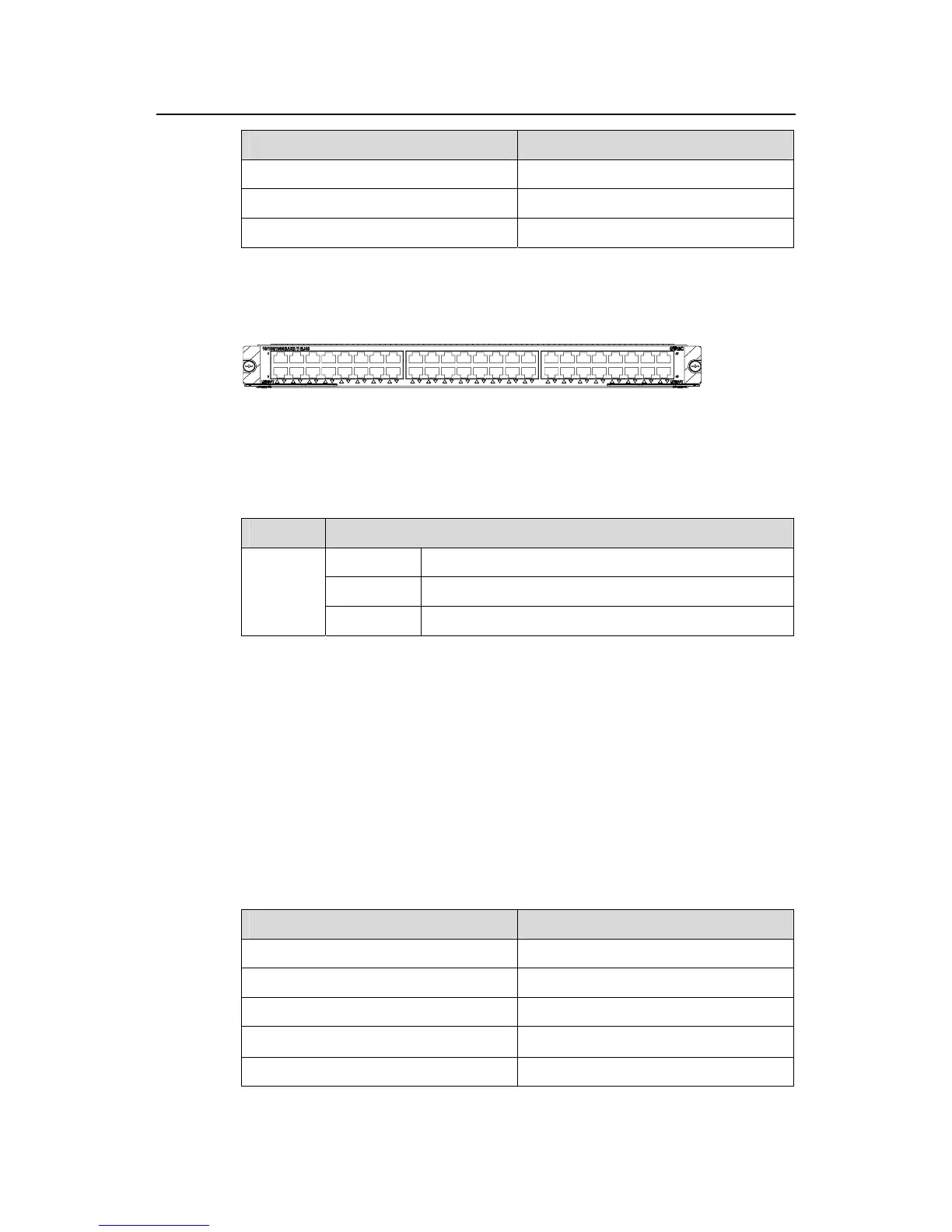

Figure 2-13 GV48 module panel
The GV48 module has one LED for each port on its panel.
Table 2-28 1000 Mbps electrical port LEDs on the GV48 module
LED Status
ON A link is present.
OFF No link is present.
LINK/ACT
Blinking Packets are being transmitted/received on the port.
2.11.3 Matching Cable
For more details, see section 2.9.3 “Matching Cable”.
2.12 FP20 Module
2.12.1 Specifications
The FP20 module provides 20 × 100 Mbps SFP optical ports.
Table 2-29 FP20 module specifications
Attribute FP20
CPU MPC8245
Boot ROM 512 KB
SDRAM 128 MB/256 MB
Dimensions (L × W) 366.7 × 340 mm (14.4 × 13.4 in.)
Max. power consumption 50W
