Quidway S8500 Series Routing Switches Chapter 2 LPU Modules
Huawei Technologies Proprietary
2-24
2.16.2 Panel and LEDs

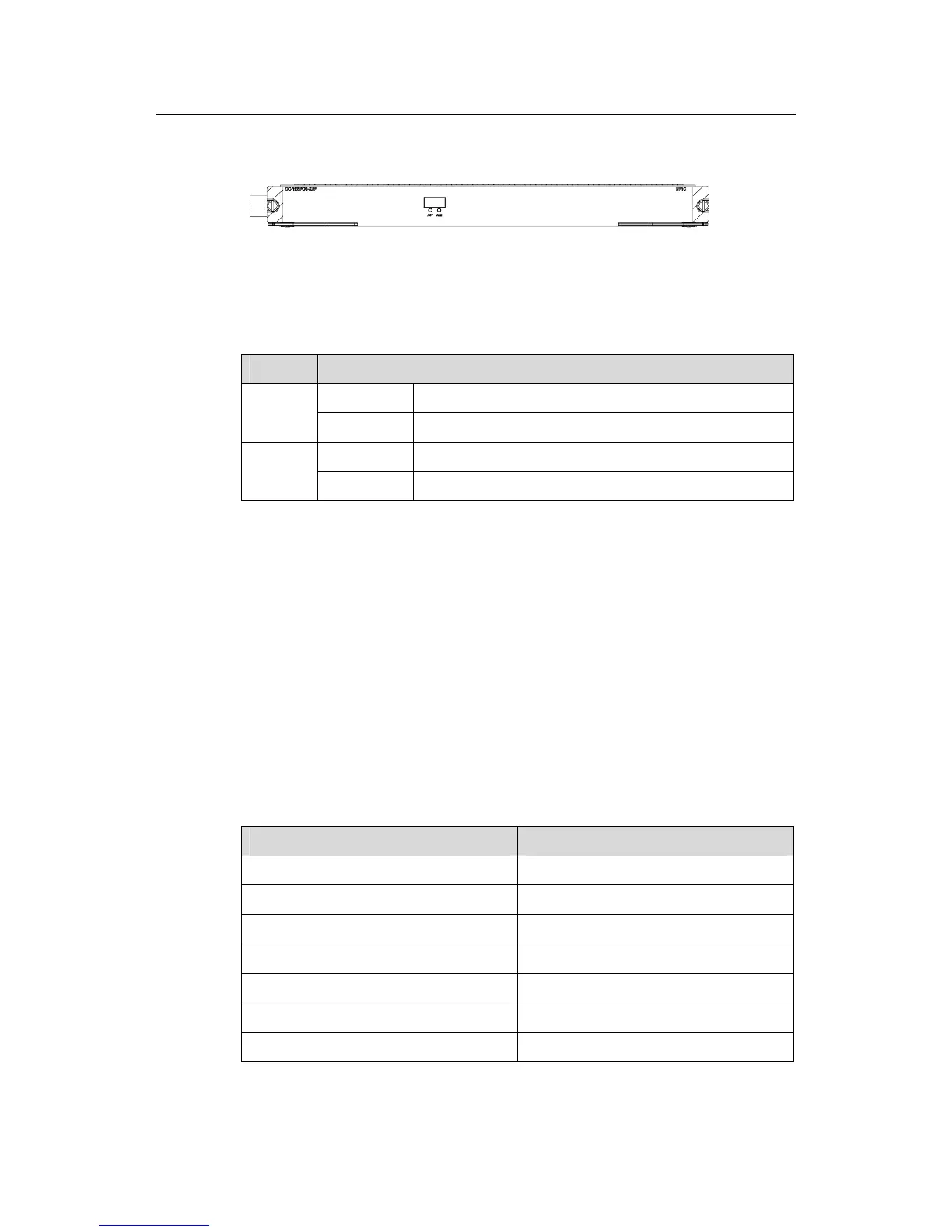

Figure 2-19 UP1 module panel
The UP1 module has two LEDs for each port on its panel.
Table 2-43 POS port LEDs
LED Status
OFF The link is normal.
ALM
ON No link is present or the link is faulty.
OFF No packets are transmitted/received on the port.
ACT
ON Packets are being transmitted/received on the port.
2.16.3 Matching Cable
The UP1 module provides one 10 Gbps POS optical ports. For more details about XFP
optical modules (to provide 10 Gbps POS optical ports), see Table 2-3.
2.17 VP2 Module
2.17.1 Specifications
The VP2 module provides two 10 Gbps RPR optical ports.
Table 2-44 VP2 module specifications
Attribute VP2
CPU MPC8245
Boot ROM 512 KB
SDRAM 256MB
Dimensions (L × W) 366.7 × 340 mm (14.4 × 13.4 in)
Number of ports Two
Connector XFP/LC
Rate 10 Gbps
