Installation Manual
Quidway S8500 Series Routing Switches Appendix B Installation of B68 Cabinet
Huawei Technologies Proprietary
B-10
(1) Retaining nut of anchor plate (2) Cabinet M16 foot
(3) Anchor plate of the B68-22 cabinet

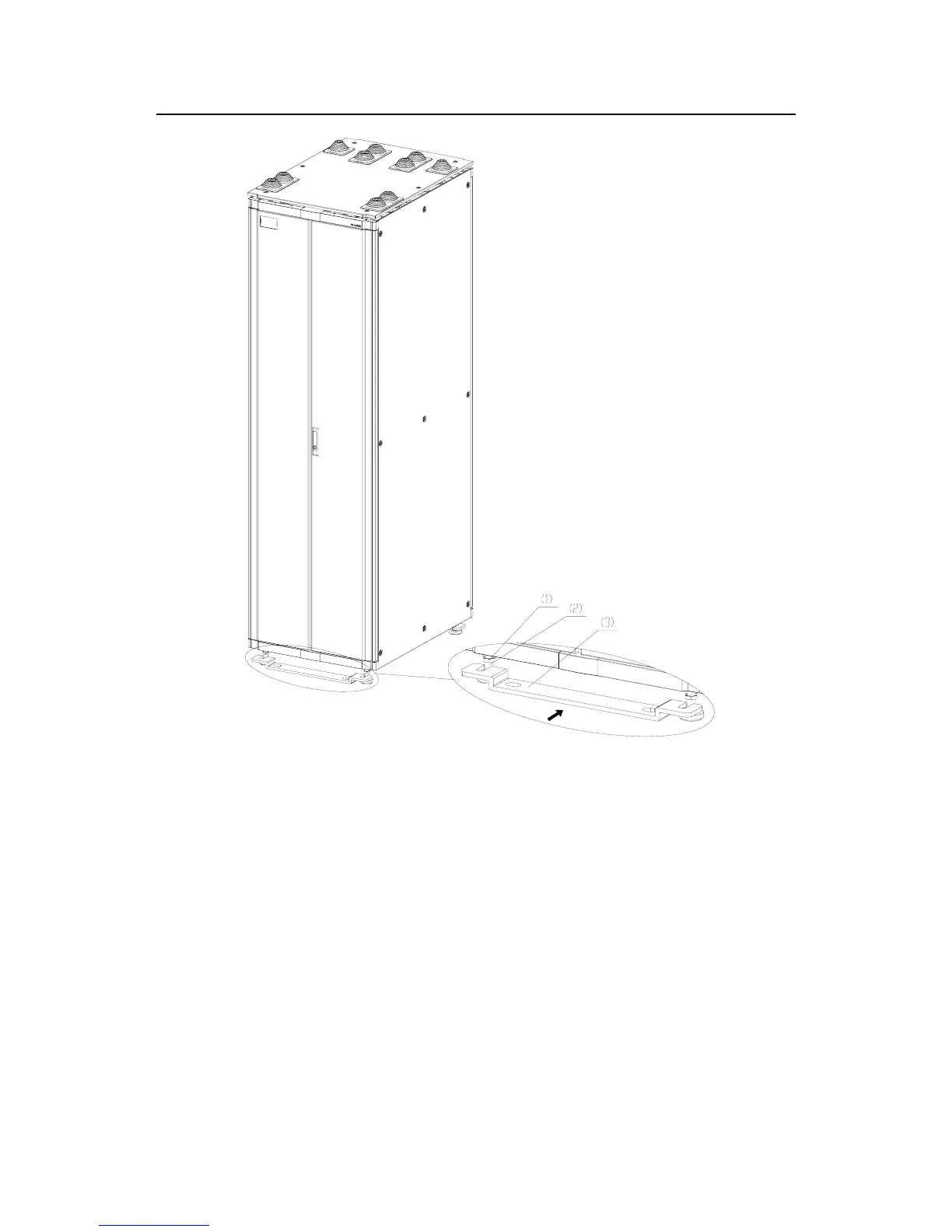

Figure B-10 Installation of anchor plate of the B68-22 cabinet
II. Installing insulating parts and fixing anchor plate
First put the insulating washer under the anchor plate and align it with the expansion
bolt hole (one anchor plate needs 2 insulating washers). Then screw the M12 × 70 bolt
into the expansion bolt hole through the anchor plate. Install the accessories (such as
insulating covering and big flat washer) according to Part A in Figure B-11, and then
fasten the bolt force moment to 45 Nm.
