Installation Manual
Quidway S8500 Series Routing Switches Appendix B Installation of B68 Cabinet
Huawei Technologies Proprietary
B-29
Caution:
It is required to remove the top covers before combining cabinets. After combination,
top covers are to be installed again.
B.3.8 Cabinet Fastening
I. Installing T nuts
Before the cabinet is fixed, install the T nuts fixing the cabinet anchor plate into the
upper trough of the slide rail. Two T nuts should be installed into the upper trough of the
slide rail on each side under one cabinet (each anchor plate needs two T nuts).
II. Installing anchor plate
Install the anchor plate of the B68-22 cabinet according to Figure B-32. Press the
anchor plate against the cabinet feet. Two anchor plates are required for one cabinet.
Caution:
The anchor plate must be installed in the direction as shown in Figure B-32.
(1) Retaining nut of anchor plate (2) Cabinet foot
(3) Anchor plate of the B68-22 cabinet

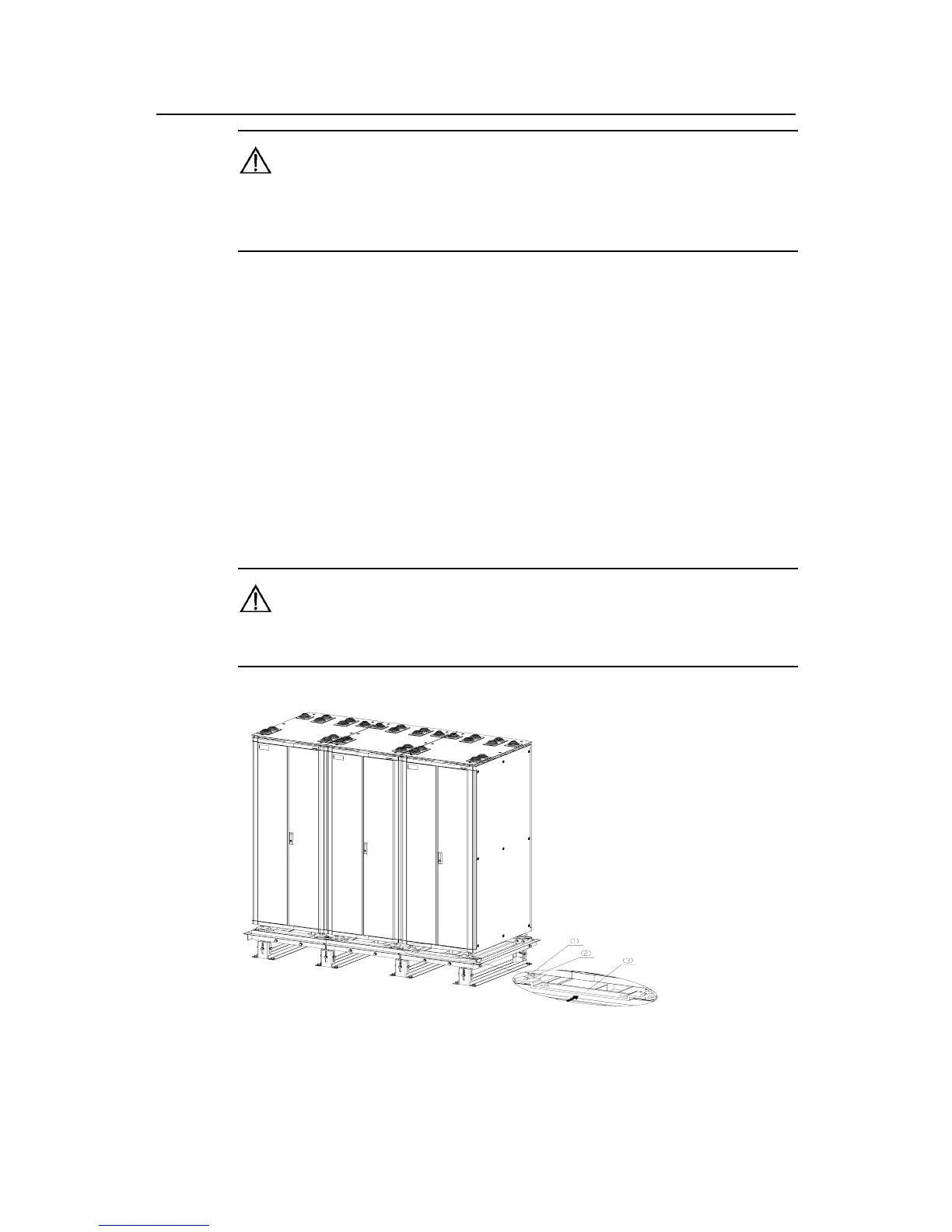

Figure B-32 Installation of anchor plate
