Installation Manual
Quidway S8500 Series Routing Switches Chapter 2 LPU Modules
Huawei Technologies Proprietary
2-6

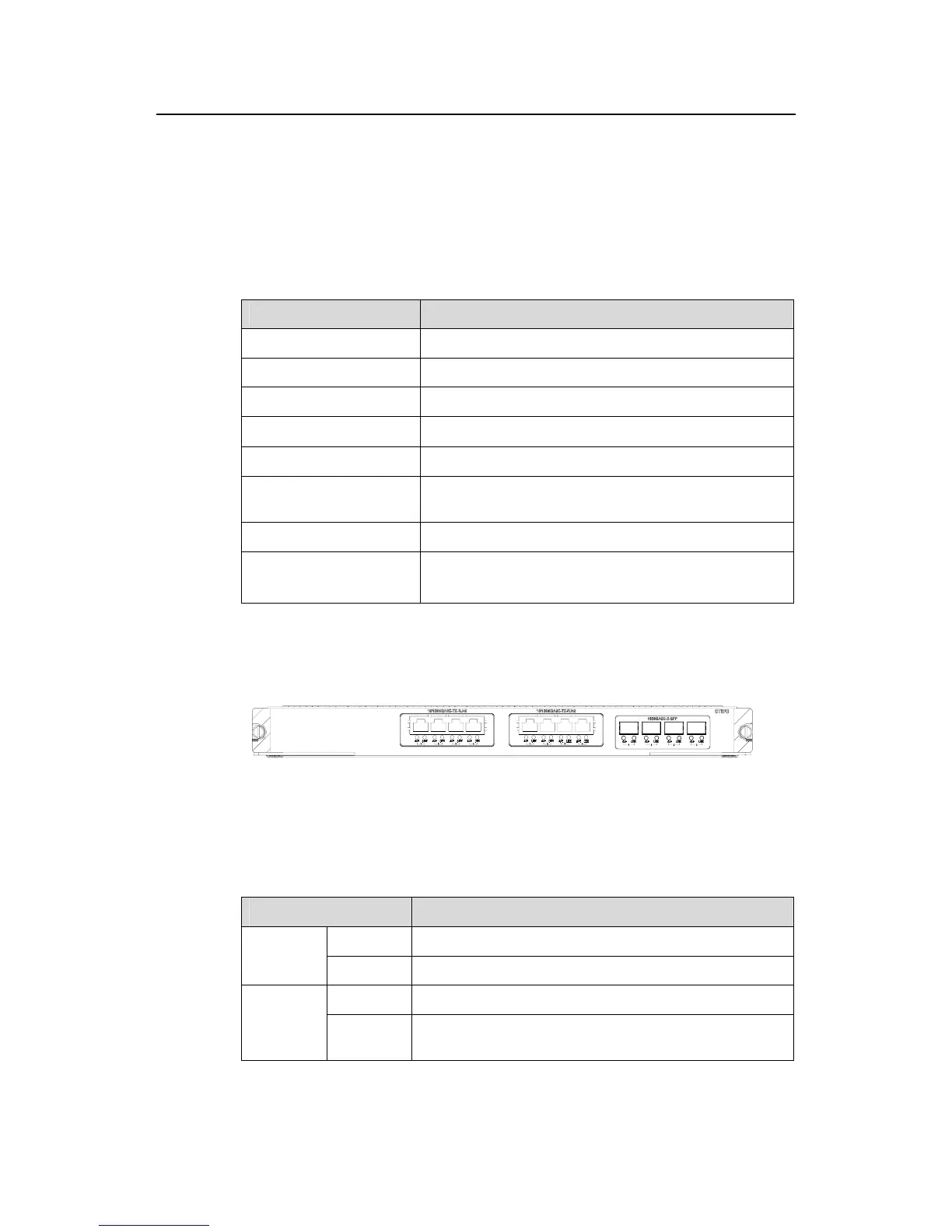

2.5 GT8P Module
2.5.1 Specifications
The GT8P module provides four 1000 Mbps SFP optical ports and eight 10/100/1000
Mbps auto-sensing RJ-45 electrical ports.
Table 2-9 GT8P module specifications
Attribute Specifications
CPU MPC8245
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (L × W) 366.7 × 340 mm (14.4 × 13.4 in.)
Max. power consumption 55 W
Number of ports
12 (four 1000 Mbps SFP optical ports, eight RJ-45
electrical ports)
Connector SFP/LC, RJ-45
Rate
1000 Mbps (1000 Mbps SFP optical ports)
10/100/1000 Mbps auto-sensing (RJ-45 electrical ports)
2.5.2 Panel and LEDs
Figure 2-4 GT8P module panel
The GT8P module has two port LEDs for each port on its panel.
Table 2-10 Port LEDs on the GT8P module
LED Status
OFF No link is present.
LINK
Green A link is present.
OFF No packets are transmitted/received on the port.
ACT
Orange
blinking
Packets are being transmitted/received on the port.
