Installation Manual
Quidway S8500 Series Routing Switches Appendix B Installation of B68 Cabinet
Huawei Technologies Proprietary
B-16
The model IV of the H800 series is a fixed height support, which is suitable for the ultra
high and ultra low supports. The suitable lowest floor height of the component is
100mm.
II. Brief Introduction to slide rail
The equipment can move along the slide rail for the convenience of location adjustment.
The slide rail integrates several supports and cabinets together so as to keep the
cabinet level and enhance the connection. The dimensions of the slide rail are shown in
Figure B-16. Each is 600mm long, and two are used for each cabinet.

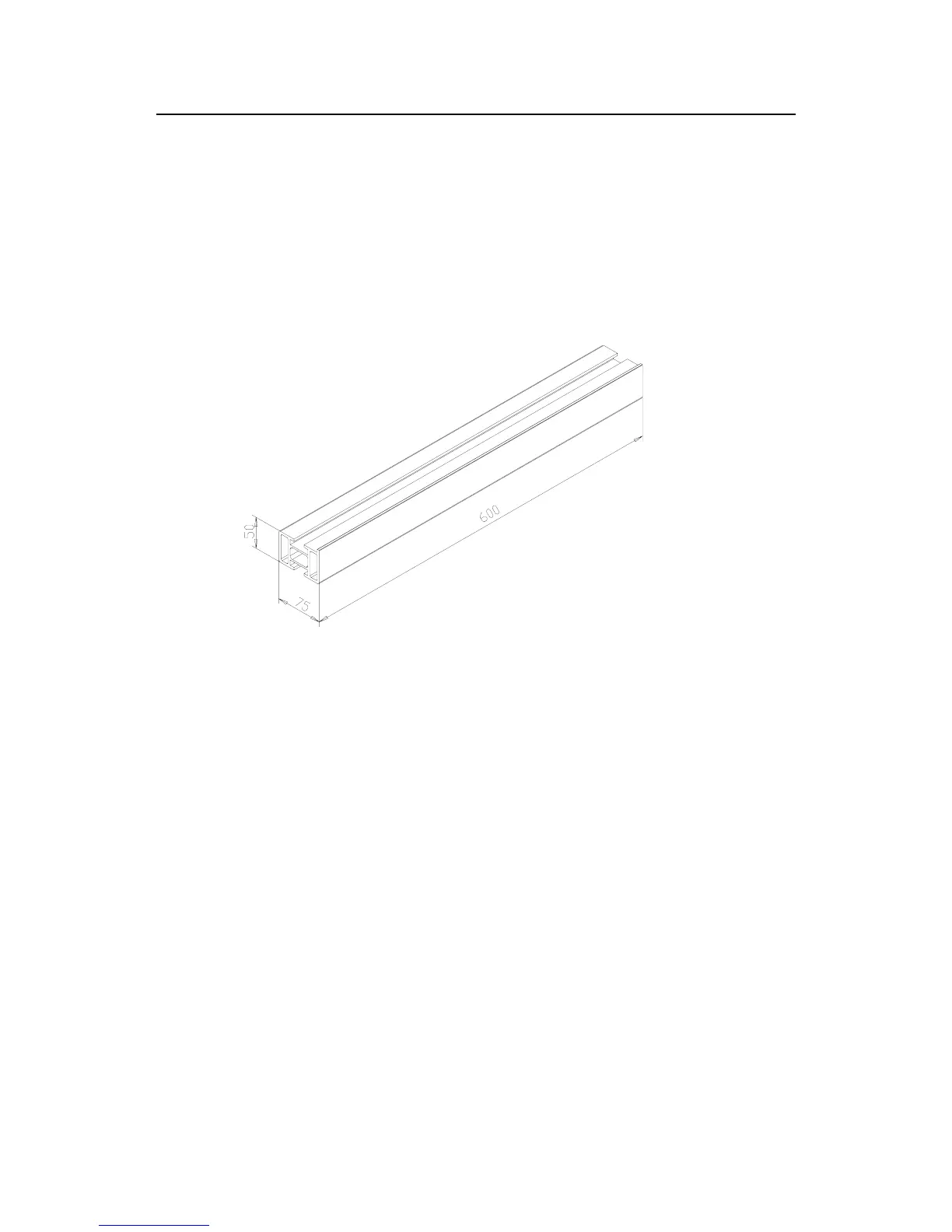

Figure B-16 Dimensions of slide rail
B.3.2 Installation Flow
The cabinet installation flow on the raised floor is shown in the following diagram.
To Next Page
