Quidway S8500 Series Routing Switches Chapter 4 Switch Installation
Huawei Technologies Proprietary
4-12
4.5.2 Connecting AC Power Cord
Caution:
z
For lightning protection, the AC power should be led through an external lightning
device into the switch.
z
Make sure the power switch on the PSU is at OFF position before connecting the
power cord.
On the front panel of AC PSU, there is a connector-retention clamp.
Step 1: Pull the clamp at the left of the PSU front panel to the right.
Step 2: Insert one end of the AC power cord accompanied with the switch into the
socket on the PSU unit.
Step 3: Pull the clamp to the left to hold the power connector.
Step 4: Insert the other end of the power cord into the power jack for the switch.
(5)(5)

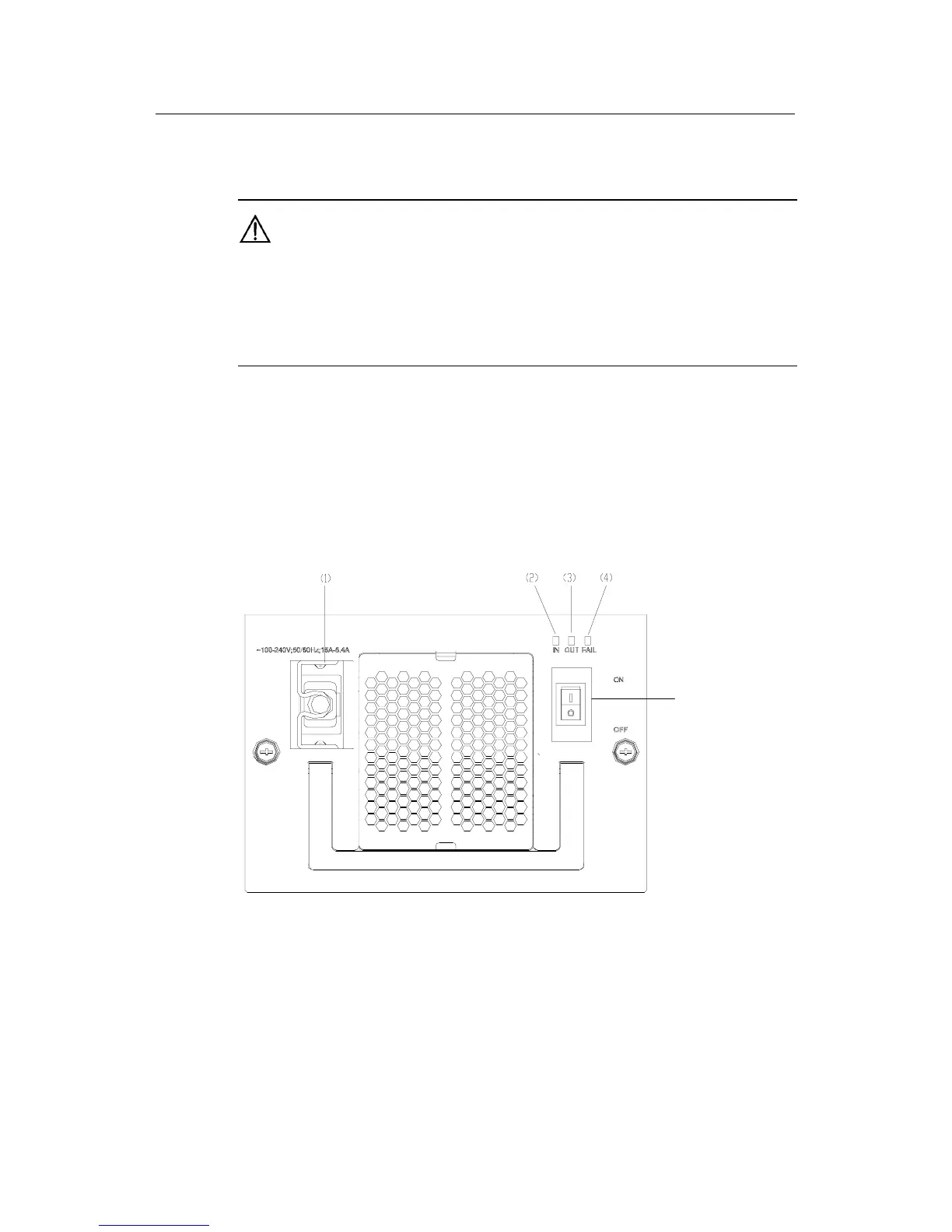

(1) Connector-retention clamp (2) Input LED
(3) Output LED (4) Fail LED
(5) Power switch
Figure 4-11 Connect AC power cord for the S8505
