Quidway S8500 Series Routing Switches Appendix B Installation of B68 Cabinet
Huawei Technologies Proprietary
B-18
installation hole locations of two cabinets and Figure B-21 shows the installation hole
locations of multiple cabinets.

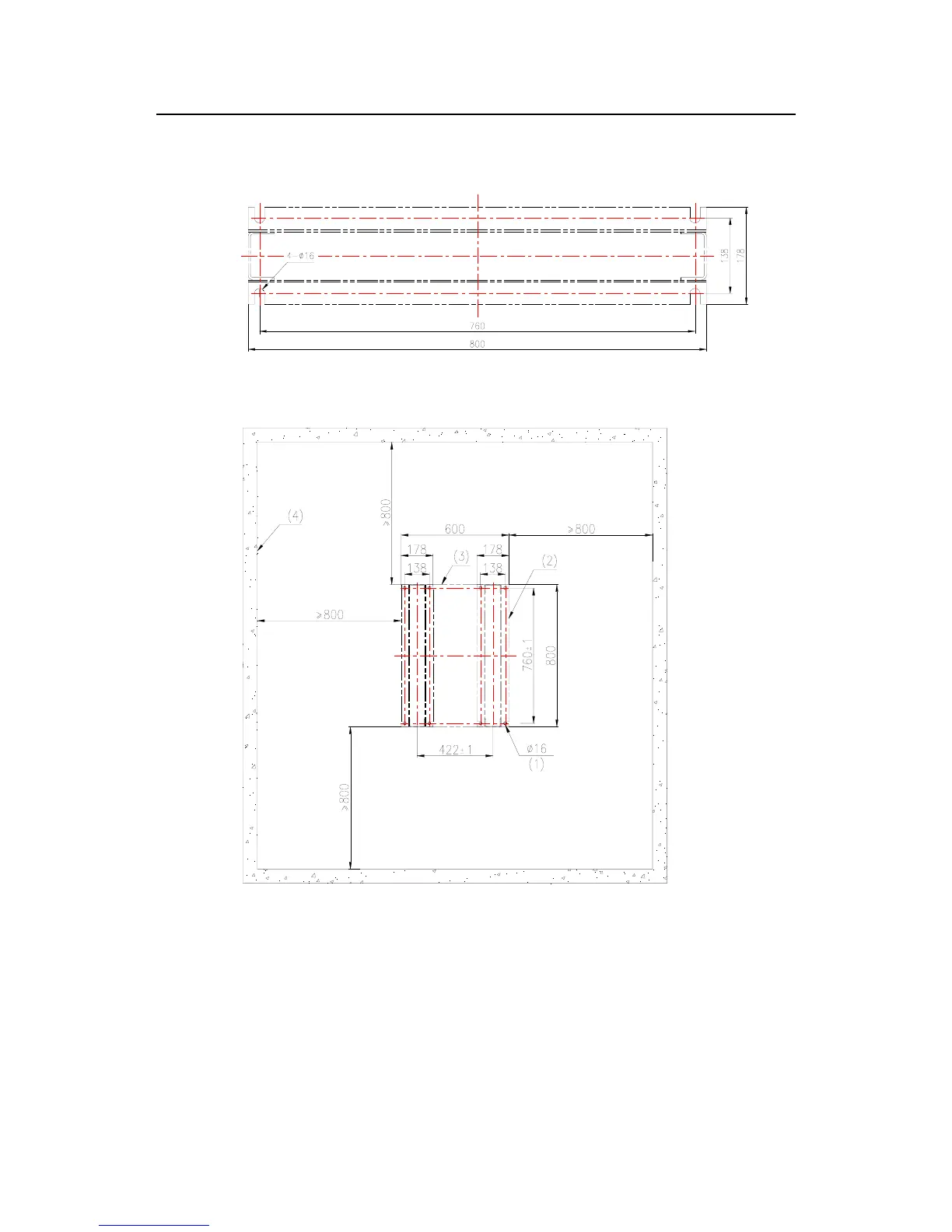

Figure B-18 Installation hole locations of the H800 series supports
(1) M12 expansion bolt hole mark (2) Cabinet outline
(3) Rear of cabinet (4) Wall or reference body
Figure B-19 Installation hole locations of a single cabinet
