Quidway S8500 Series Routing Switches Appendix B Installation of B68 Cabinet
Huawei Technologies Proprietary
B-36
(1) Insulating plate (2) Expansion bolt M8×80 (3) Angle connector
(4) Insulating covering (5) Big washer Φ8 (6) Nut M8
(7) Channel beam (8) Bolt M8%20 (9) Quakeproof angle plate

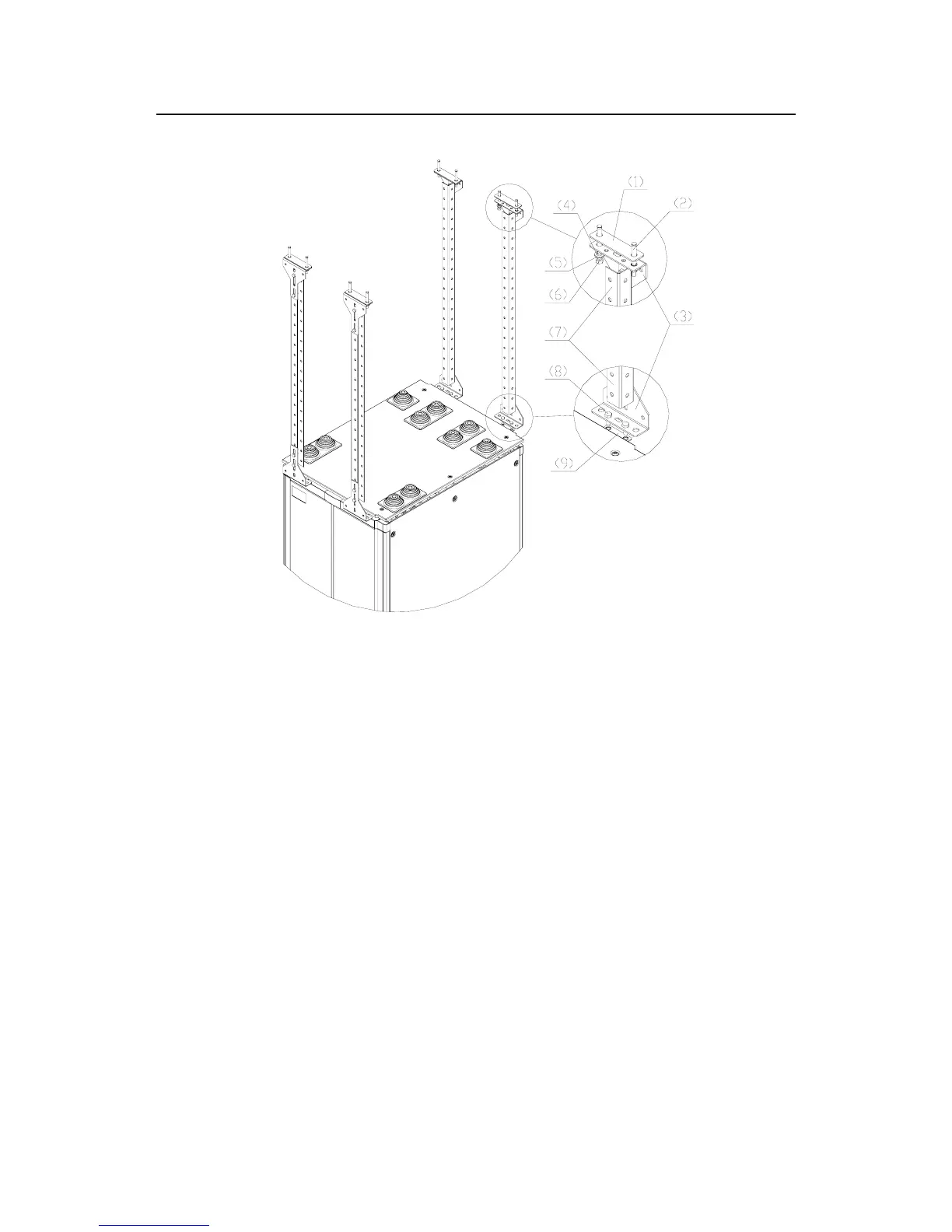

Figure B-38 Quakeproof reinforcement for one cabinet
