Quidway S8500 Series Routing Switches Chapter 1 Product Overview
Huawei Technologies Proprietary
1-11
Attribute SRP1N0
Max. power
consumption
60 W
2) SRP1N0 panel
The SRP1N0 module provides CF port, CF LED (CFS), 10Base-T/100Base-TX port,
RS232/485 port, Console port, AUX port, RESET button, LPU status LEDs, SRP1N0
status LEDs (SFS, ACT, ALM, RUN), as shown in Figure 1-9.

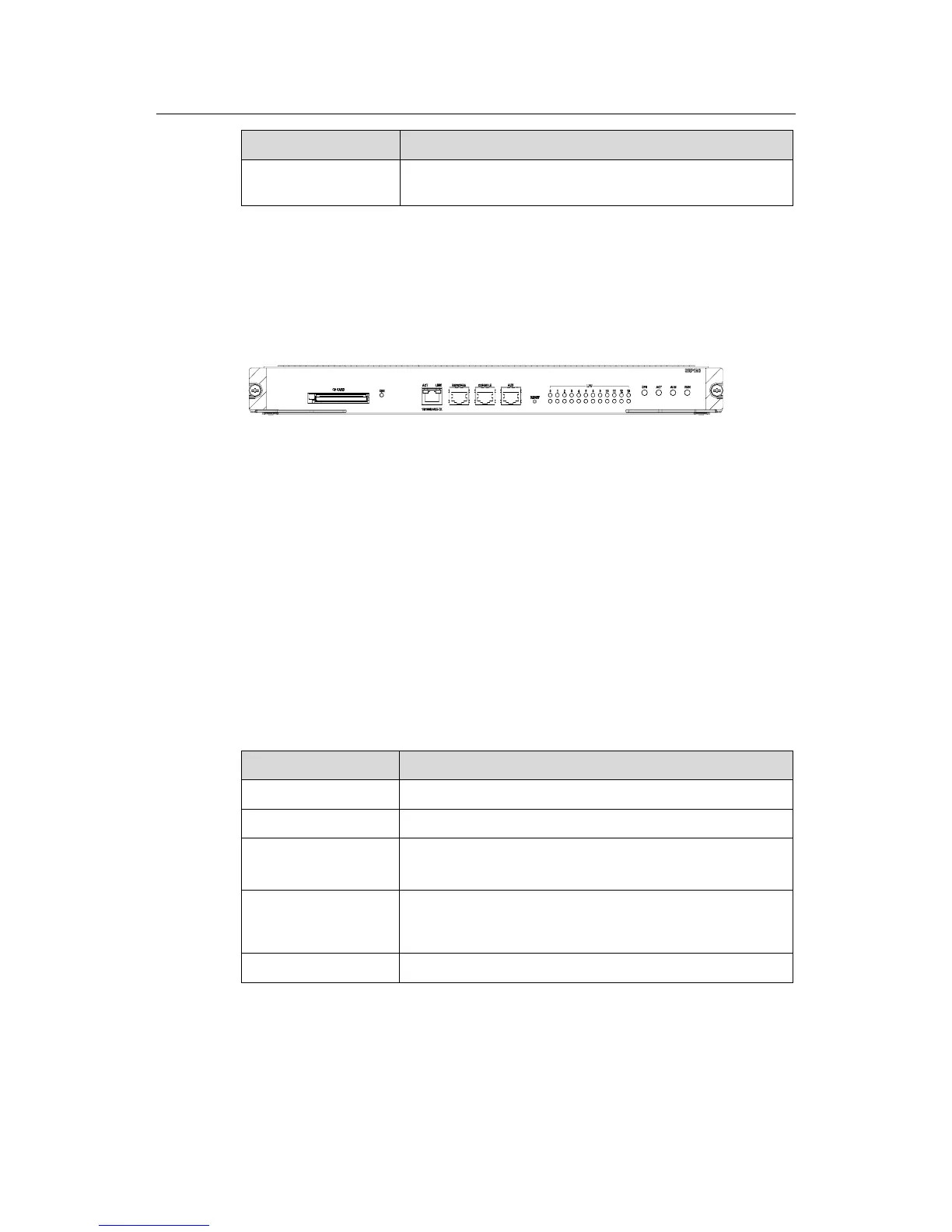

Figure 1-9 SRP1N0 panel
3) User ports
z
CF port
The SRP1N0 module provides a CF port to accommodate a standard CF card, where
you can save logging information, host version information, alarming and other
diagnostic information and conveniently upgrade software online.
z
Management 10Base-T/100Base-TX port
The management 10Base-T/100Base-TX port uses an RJ-45 connector. It can connect
a background terminal for system program loading and debugging, or connect a
network management station for remote system management.
Table 1-7 Management 10Base-T/100Base-TX port specifications
Attribute Description
Connector RJ-45
Number of ports One
Rate
10 Mbps, half duplex/full duplex
100 Mbps, half duplex/full duplex
Max. transmission
segment over the
selected medium
100 m (328 ft) over the category-5 twisted pair cable
(crossover cable is required).
Service System program upgrade and network management
The following table describes the status LEDs for the management
10Base-T/100Base-TX port.
