(1) T nut (2) Spring washer Φ12 (3) Flat washer Φ12 (4) Bolt M12%20
(5) Washer (6) Slide rail (7) Shield of slide rail

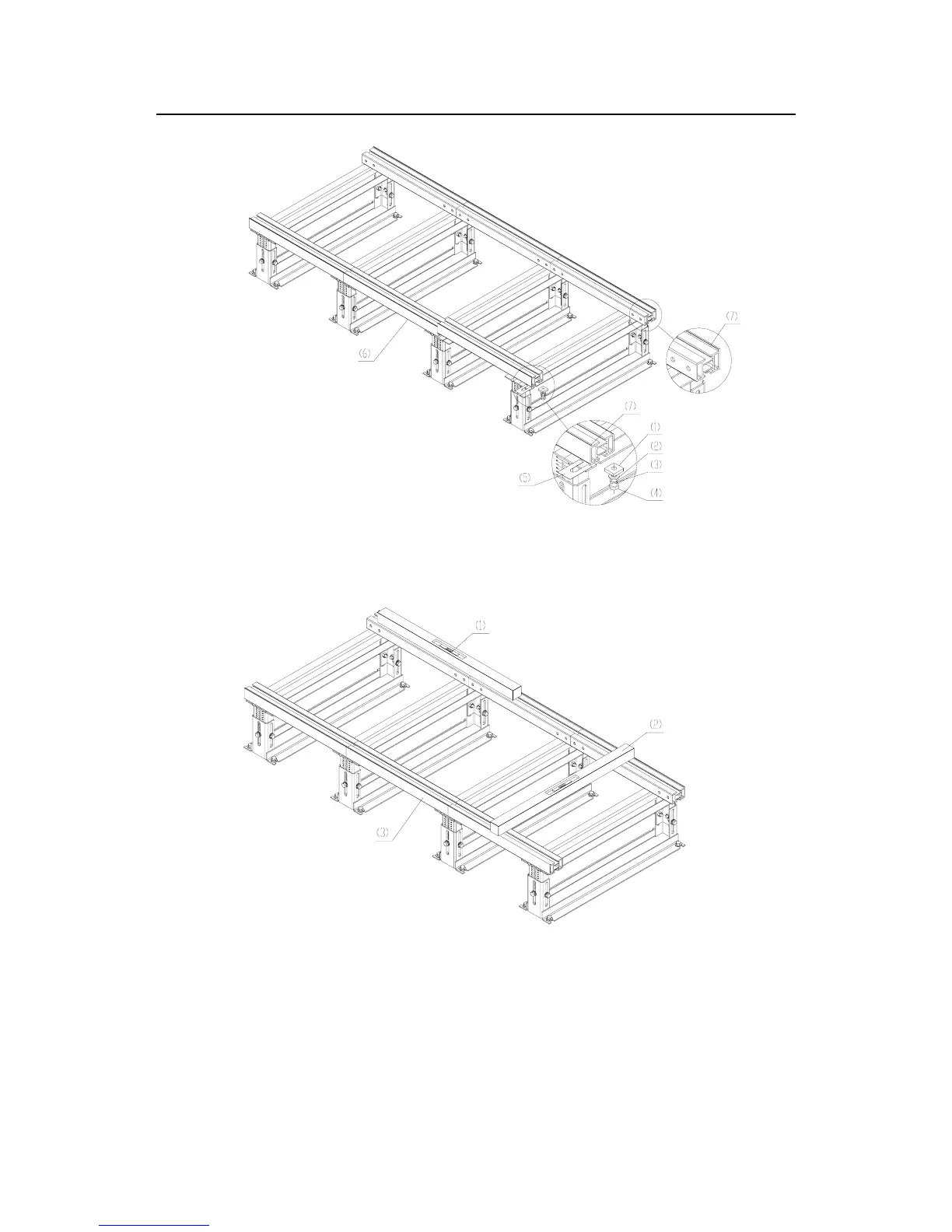

Figure B-25 Fixing and level adjustment of slide rail and support
(1) Transverse measurement with horizontal ruler
(2) Longitudinal measurement with horizontal ruler
(3) Slide rail
Figure B-26 Horizontal measurement of slide rail
