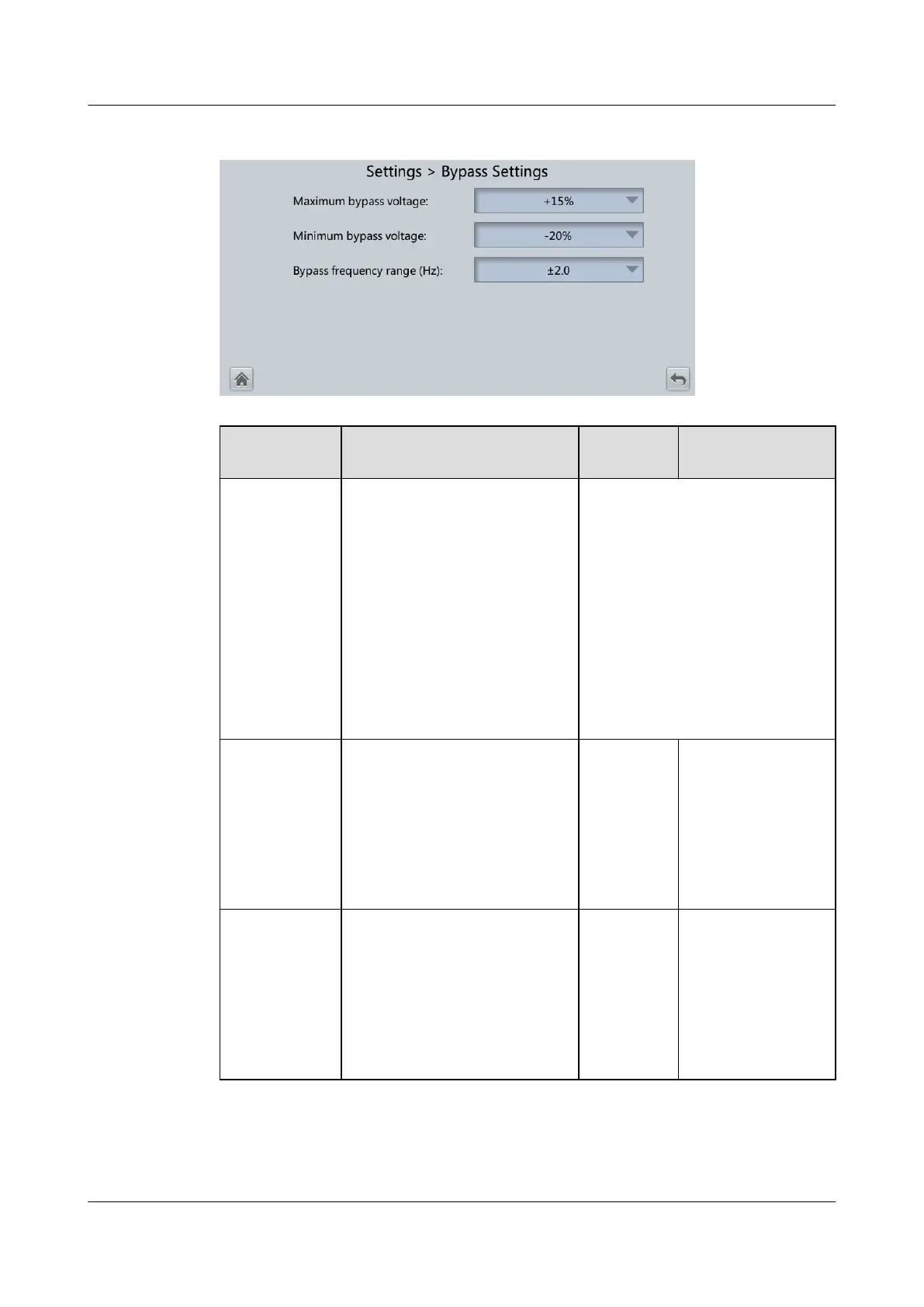

Figure 4-31 Bypass Settings
Item Description Default
Value
Value Range
Maximum
bypass
voltage
When the dierence between
the bypass voltage and the
rated voltage is greater than
the specied value, the
system determines that the
bypass voltage is abnormal,
and the bypass is
unavailable.
● When the voltage level is
380 V, the value is +10%,
+15%, +20%, or +25%. The
default value is +15%.
● When the voltage level is
400 V, the value is +10%,
+15%, or +20%. The default
value is +15%.
● When the voltage level is
415 V, the value is +10% or
+15%. The default value is
+10%.
Minimum
bypass
voltage
When the dierence between
the bypass voltage and the
rated voltage is greater than
the specied value, the
system determines that the
bypass voltage is abnormal,
and the bypass is
unavailable.
-20% –10%, –15%, –
20%, –30%, –40%,
–50%, –60%
Bypass
frequency
range(Hz)
When the dierence between
the bypass input frequency
and the rated frequency is
greater than the specied
value, the system determines
that the bypass frequency is
abnormal, and the bypass is
unavailable.
±2.0 ±0.5, ±1.0, ±2.0,
±3.0, ±4.0, ±5.0,
±6.0
