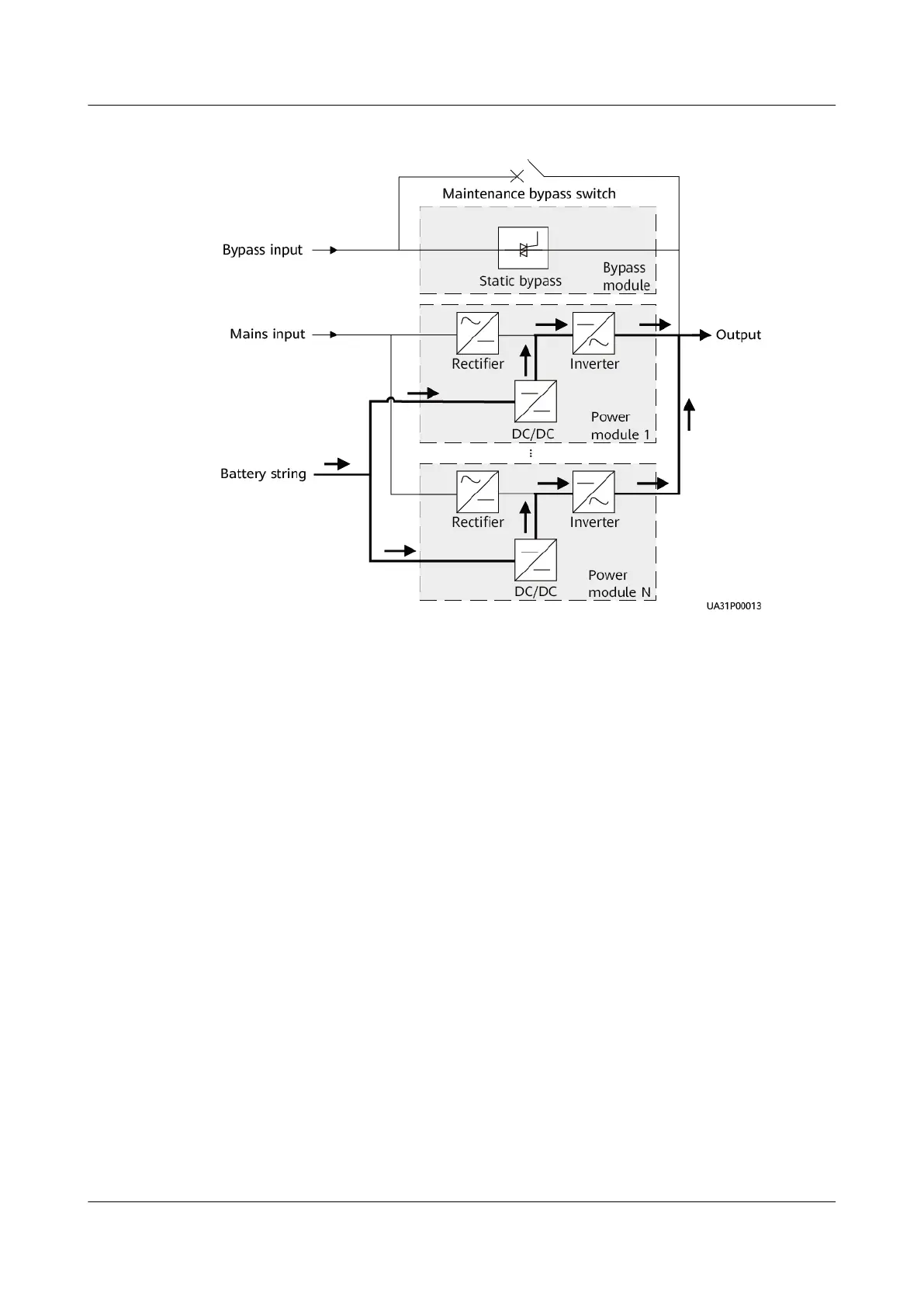

Figure 2-5 UPS conceptual diagram in battery mode
2.2.2.4 Maintenance Bypass Mode
When the UPS works in maintenance bypass mode, the current ows through the
maintenance bypass instead of the power module. You can maintain the circuit
inside the cabinet.
UPS5000-E-(30 kVA–180 kVA)
User Manual (Integrated UPS) 2 Product Overview
Issue 02 (2022-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 28
