Huawei UPS5000-E-30 kVA - Bypass Module

2.3.3 Bypass Module
Appearance

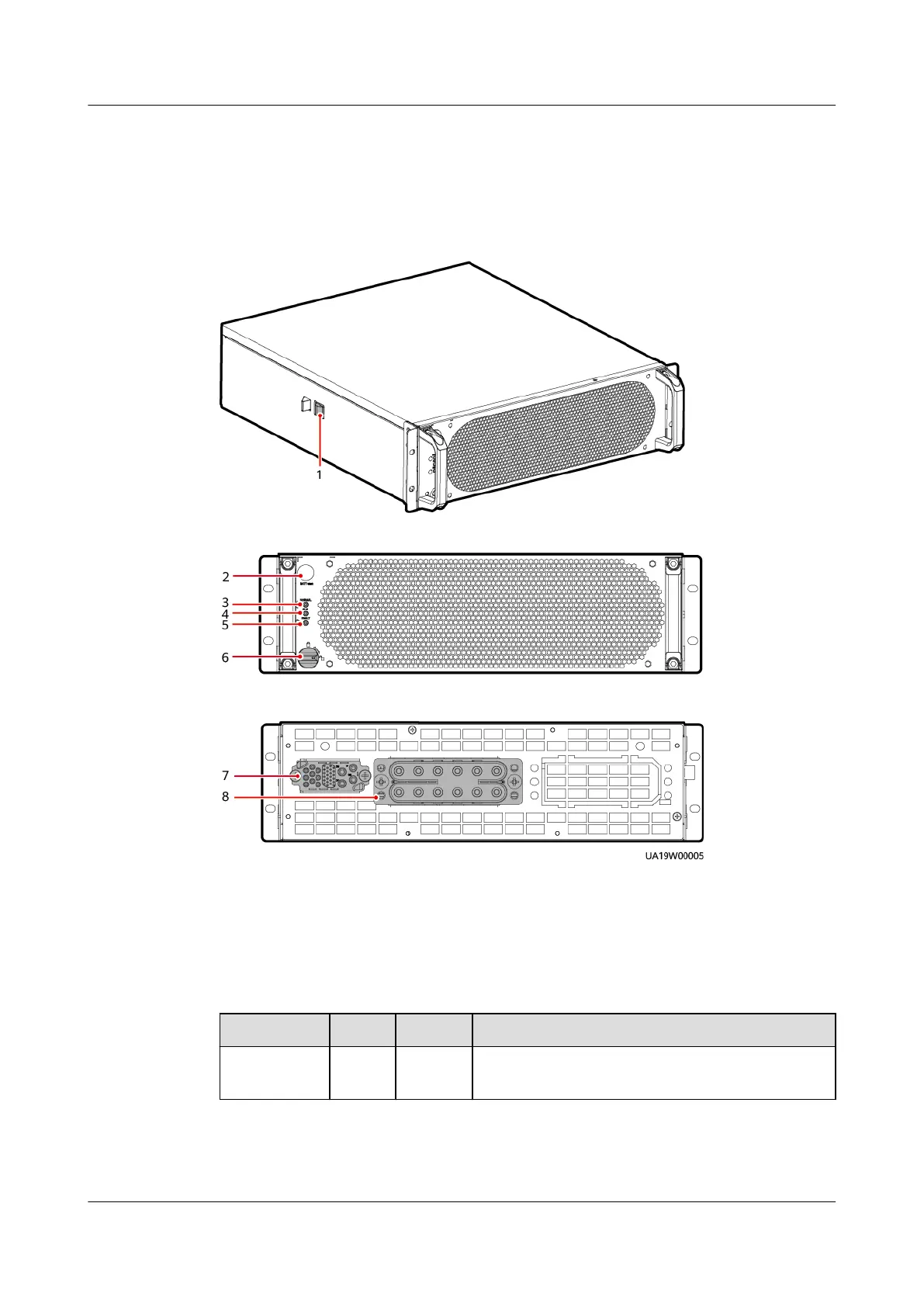

Figure 2-10 Bypass module
(1) Positioning lock (2) Battery cold start
button
(3) Running indicator (4) Alarm indicator
(5) Fault indicator (6) Ready switch (7) Signal port (8) Input and output
ports
Table 2-3 Indicator description
Indicator
Color Status Description
Running
indicator
Green Steady
on
The system is working in bypass mode.
