2.3.2 Power Module
Appearance

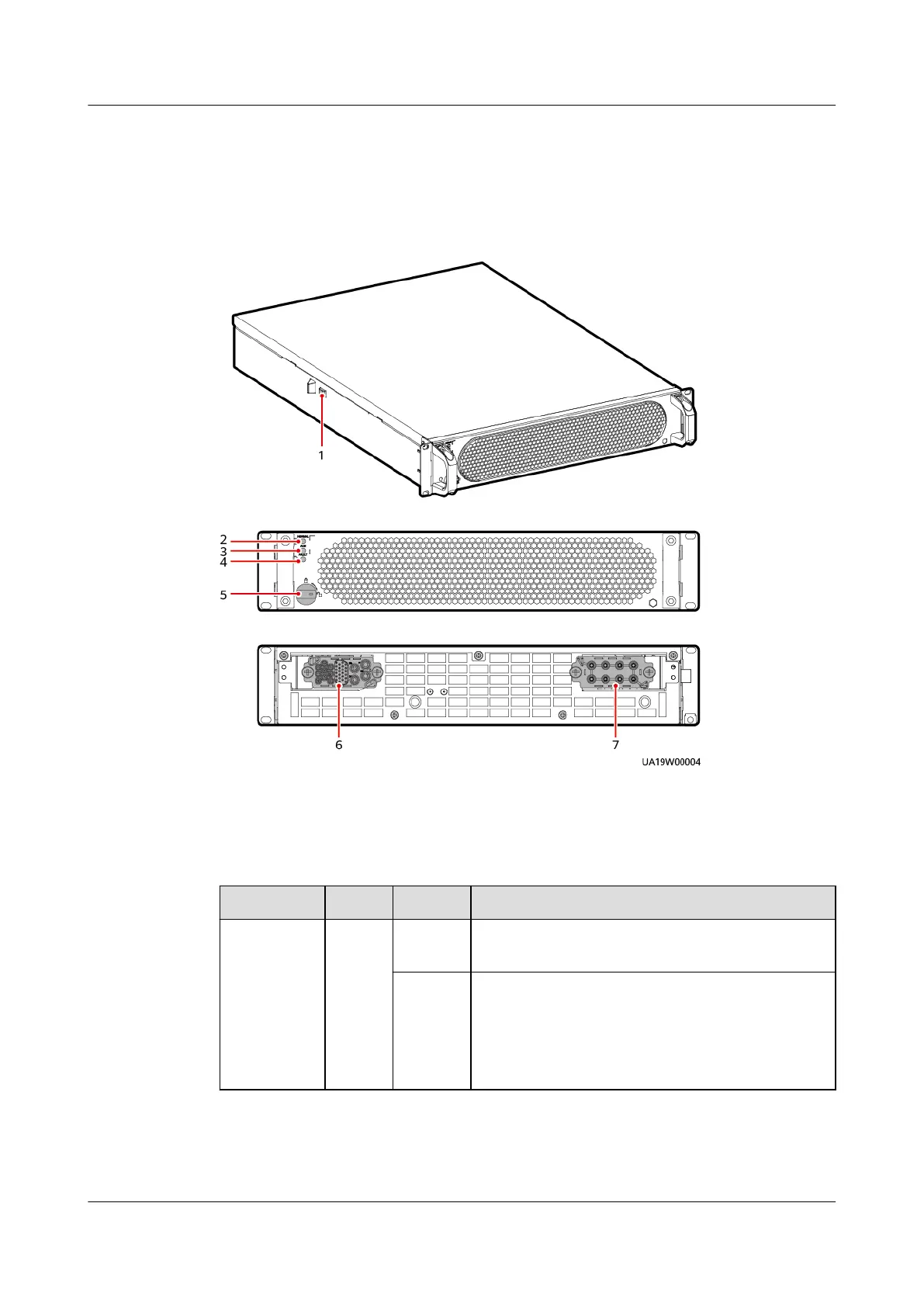

Figure 2-9 Power module
(1) Positioning lock (2) Running indicator (3) Alarm indicator (4) Fault indicator
(5) Ready switch (6) Output port (7) Input port
Table 2-2 Indicator description
Indicator
Color Status Description
Running
indicator
Green Steady
on
The system is working in inverter mode.
Blinking
at long
interval
s
● The inverter is ready and in standby state
(blinking at 0.5 Hz, on for 1s and o for
1s).
● The inverter is not started (blinking at 0.2
Hz, on for 2.5s and o for 2.5s).
