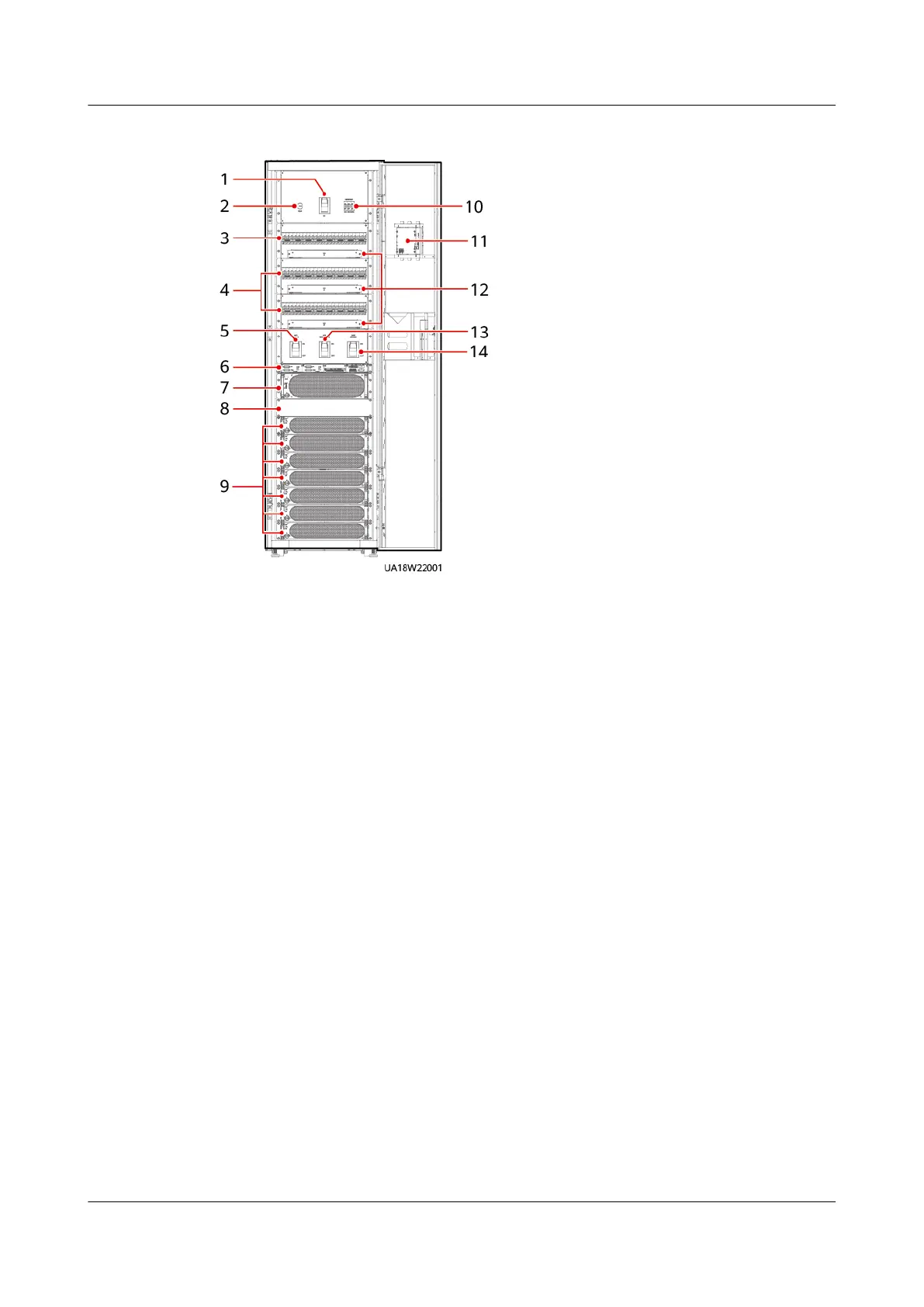

Figure 2-8 Front view of the UPS5000-E-180K-HABBS
(1) Input circuit breaker (2) Power input status
indicator
(3) Power distribution circuit
breaker for smart cooling
products
(4) IT load circuit breakers (5) UPS input circuit breaker (6) Control module
(7) Bypass module (8) Filler panel (9) Power modules
(10) Lighting circuit breaker (11) Monitoring display unit
(MDU)
(12) Power distribution
monitoring boards
(13) UPS maintenance bypass
circuit breaker
(14) UPS output circuit breaker
UPS5000-E-(30 kVA–180 kVA)
User Manual (Integrated UPS) 2 Product Overview
Issue 02 (2022-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 31
