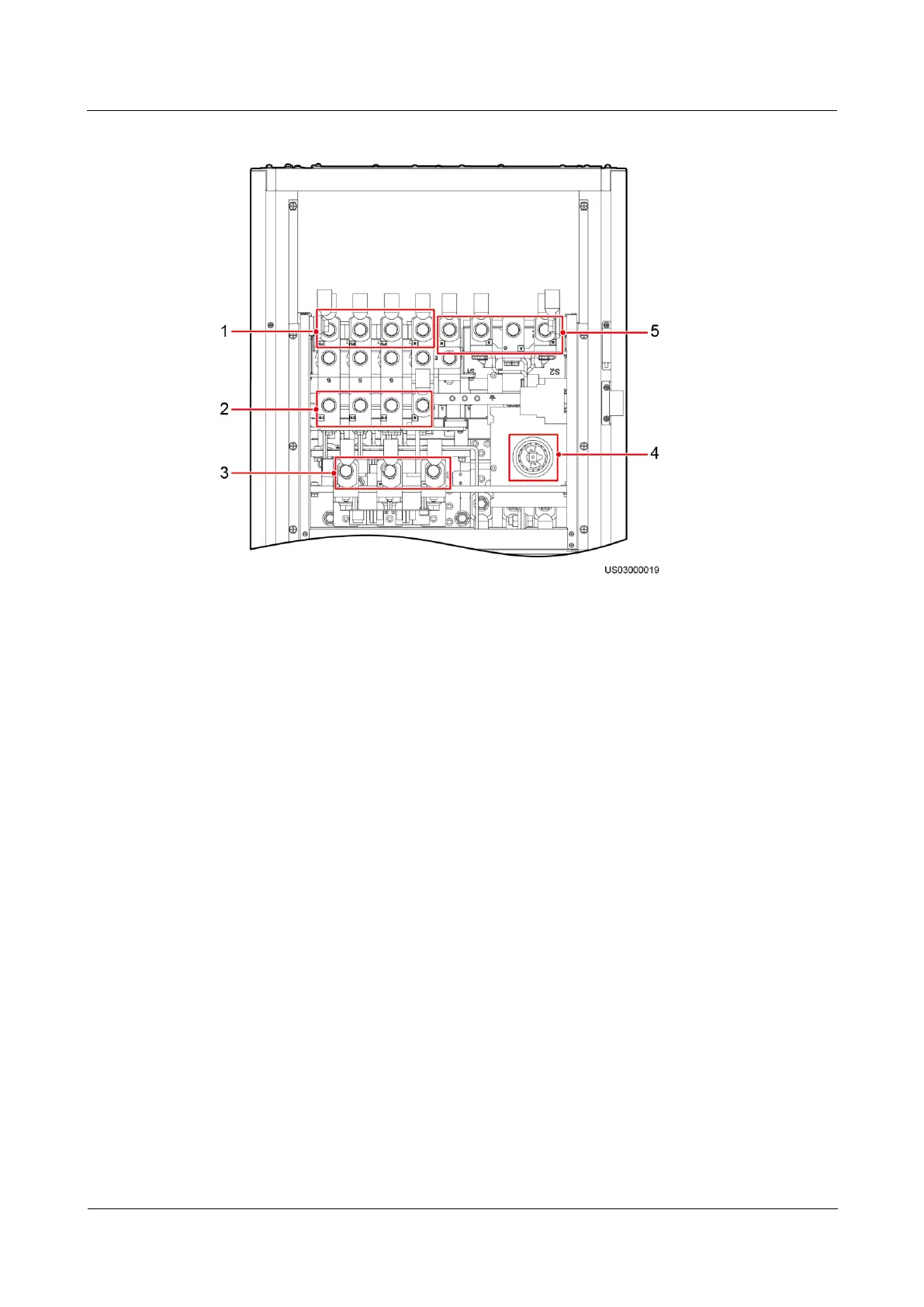

Figure 3-81 Copper bar positions
(1) Mains input terminals
(1L1–1L3, N)
(2) Bypass input terminals
(2L1–2L3, N)
(3) Battery input
terminals (+, N, –)
(4) Maintenance bypass
switch
(5) Output terminals (U, V,
W, N)
Step 2 Determine the cabling mode.

Remove small covers for routing cables.
