UPS5000-E-(50 kVA-300 kVA)

User Manual (50 kVA Power Modules)

3 Installation

Issue 11 (2019-12-20)

3.2.3.7 Connecting the iBAT

Procedure

Step 1 Connect the COM_OUT port on the CIM of the iBAT to the COM2 port on the monitoring

interface card.

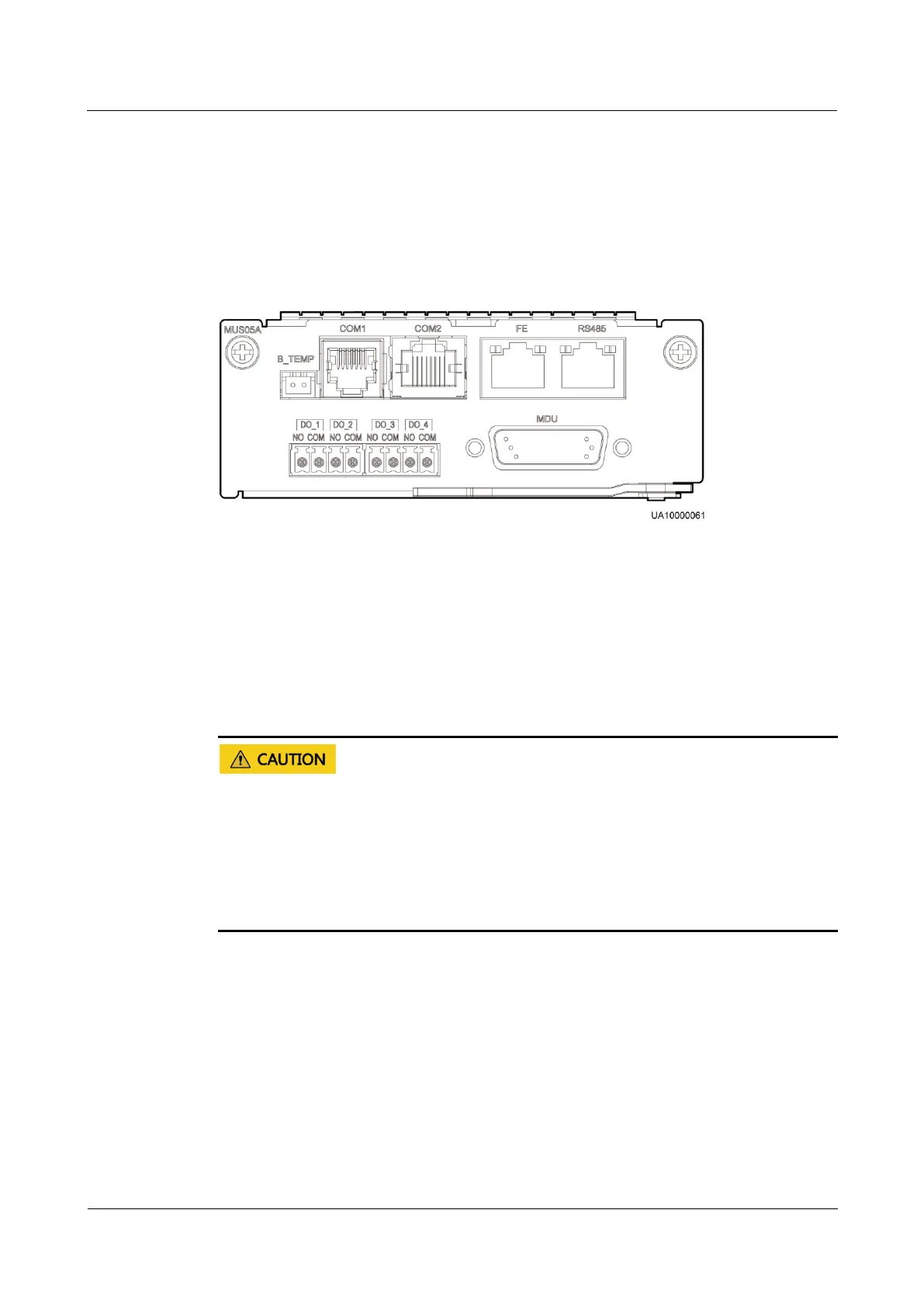

Figure 3-27 COM2 port

----End

3.2.4 UPS Cable Connection Reference

Context



Keep away from cabinets when preparing cables to prevent cable scraps from entering the

cabinets. Cable scraps may cause ignition during power-on and result in personal injury

and device damage.



After installing cables, clean the cabinet top, bottom, copper bar wiring positions, and

other positions. Ensure that there is no dust or scraps inside and around cabinets.



Prepare terminals onsite. The length of the copper wire should be the same as that of the

part of the terminal that covers the conductor.

Procedure

Step 1 Route a cable into the cabinet and bind it to a nearby beam.

Step 2 Pull the cable to the copper bar to which the cable is to be connected, determine the cable

length, and mark the cable at the position where the cable is to be cut.

Step 3 Pull the marked cable out of the cabinet, cut the cable from the marked position, strip the

cable, and crimp a terminal.
