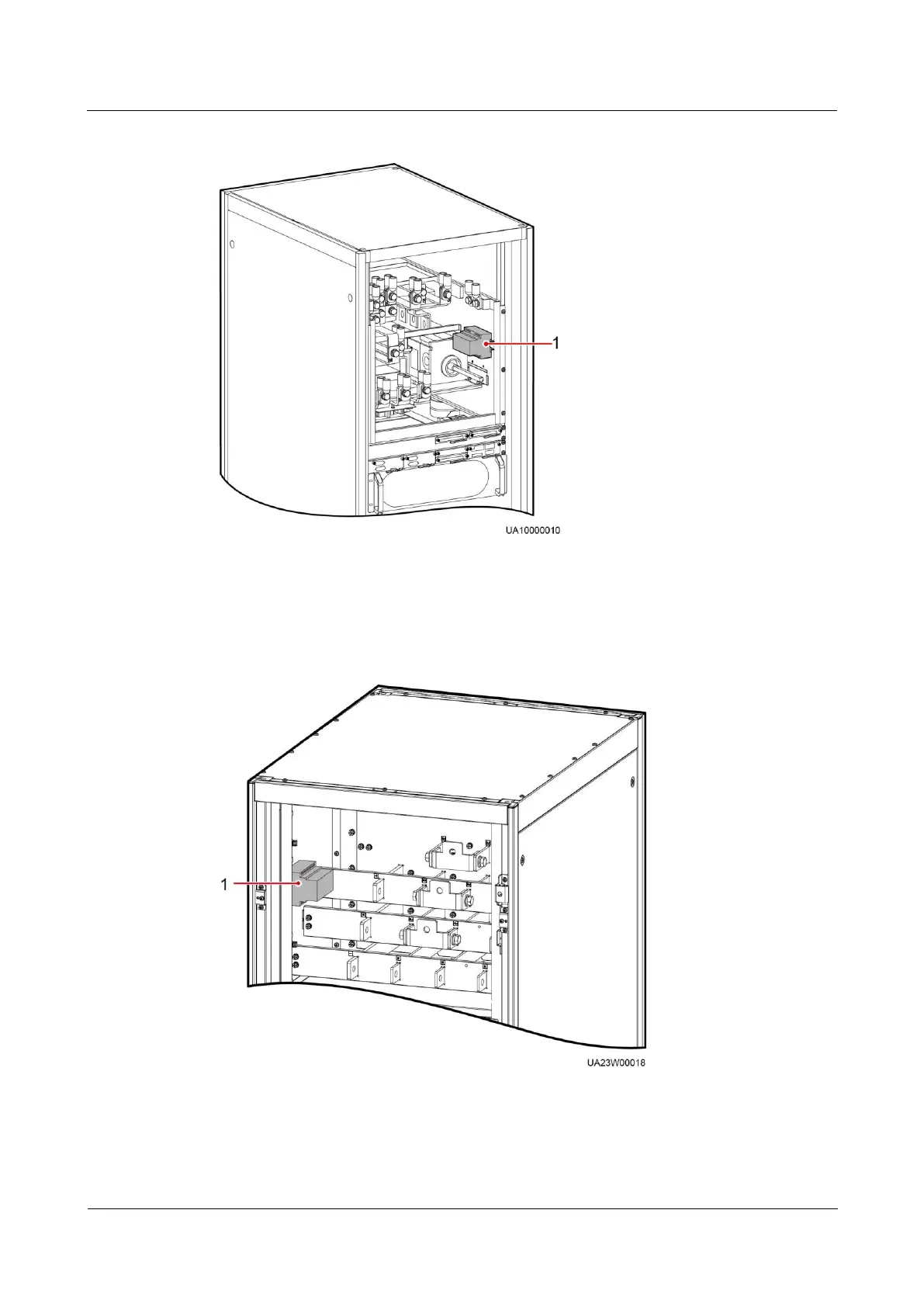

Figure 3-25 Position of a battery grounding failure detector in a UPS5000-E-300K-SMT
(1) Battery grounding failure detector
Figure 3-26 Position of a battery grounding failure detector in a UPS5000-E-300K-SMT
(isolation protection)
(1) Battery grounding failure detector
----End
