3.2.3.2 Installing an IP21 Component
Procedure
Step 1 Install leveling feet at the bottom of the IP21 component, with two long feet on the front and
two short feet at the rear.
Refer to the "front" and "back" silk screens on the surface of the IP21 component.
Select the mounting holes for leveling feet based on the cabinet width onsite.

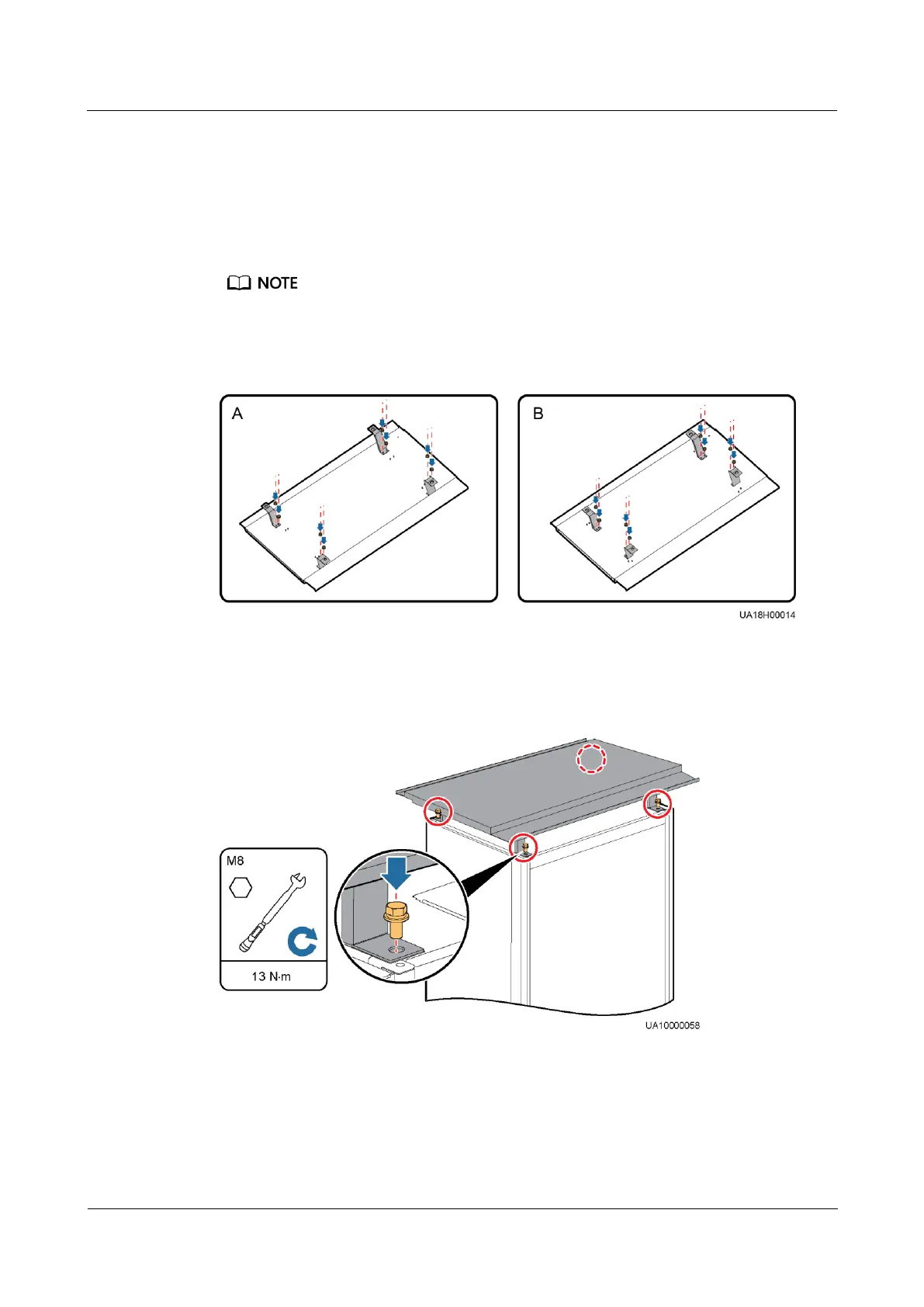

Figure 3-18 Installing leveling feet
Step 2 Secure the IP21 component to the top of each cabinet using four M12 screws.
Figure 3-19 Installing the IP21 component
----End
