UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Copyright © Huawei Technologies Co., Ltd.
Tighten the two screws in step 2 in Figure 3-5. Otherwise, the slide plate may move when the UPS is
removed.

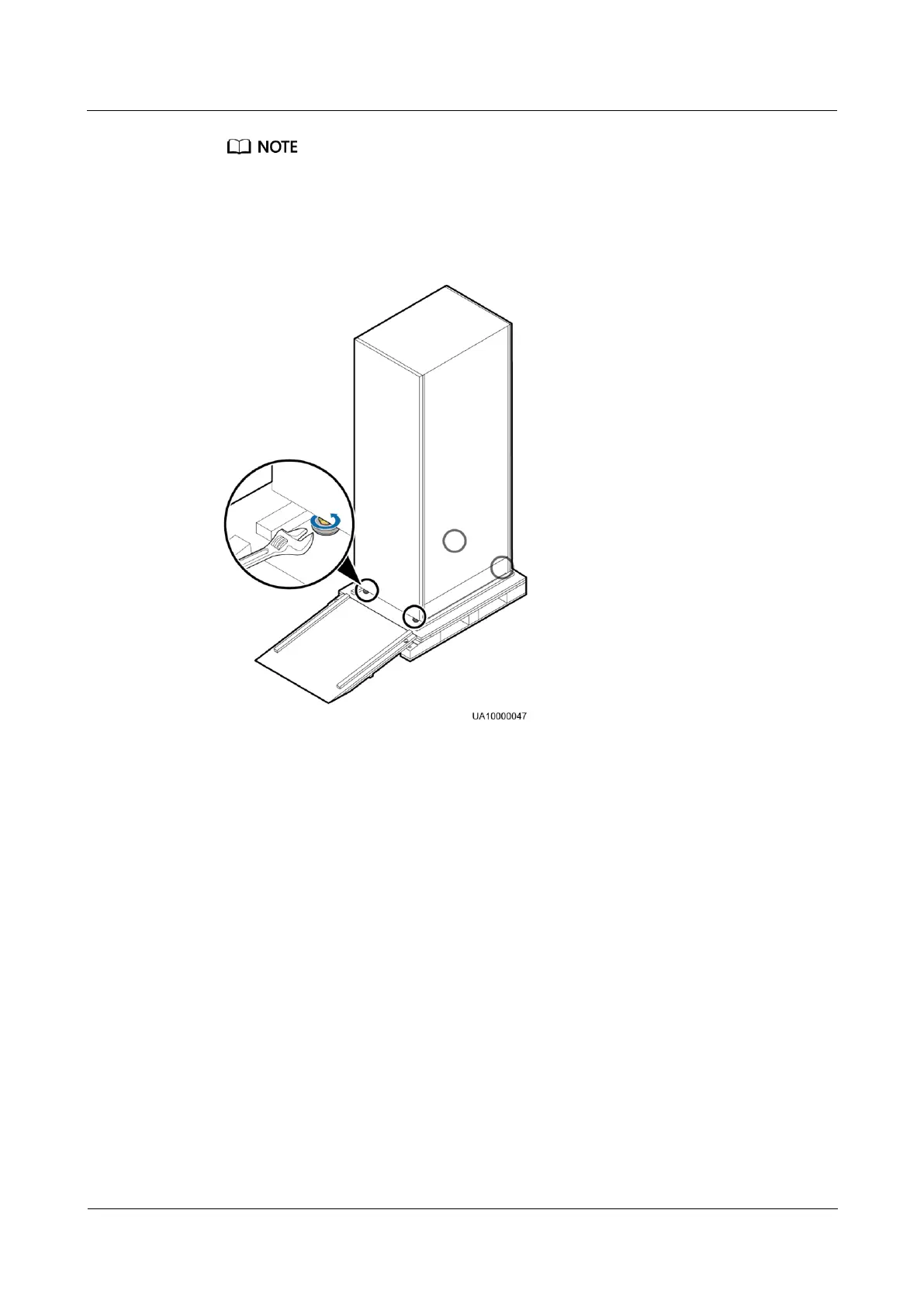

Step 8 Raise the four anchor bolts to the highest position using an adjustable wrench.
Figure 3-6 Raising anchor bolts
Step 9 Push the cabinet along the sliding plate to the floor.
----End
3.2 Installing a Single UPS
3.2.1 Installing the Cabinet
Secured Installation
Step 1 Determine the position for installing the cabinet. Mark mounting holes for the UPS based on
the following figures:
