Huawei UPS5000-E Series User Manual

UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
2 Overview
Issue 11 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
46

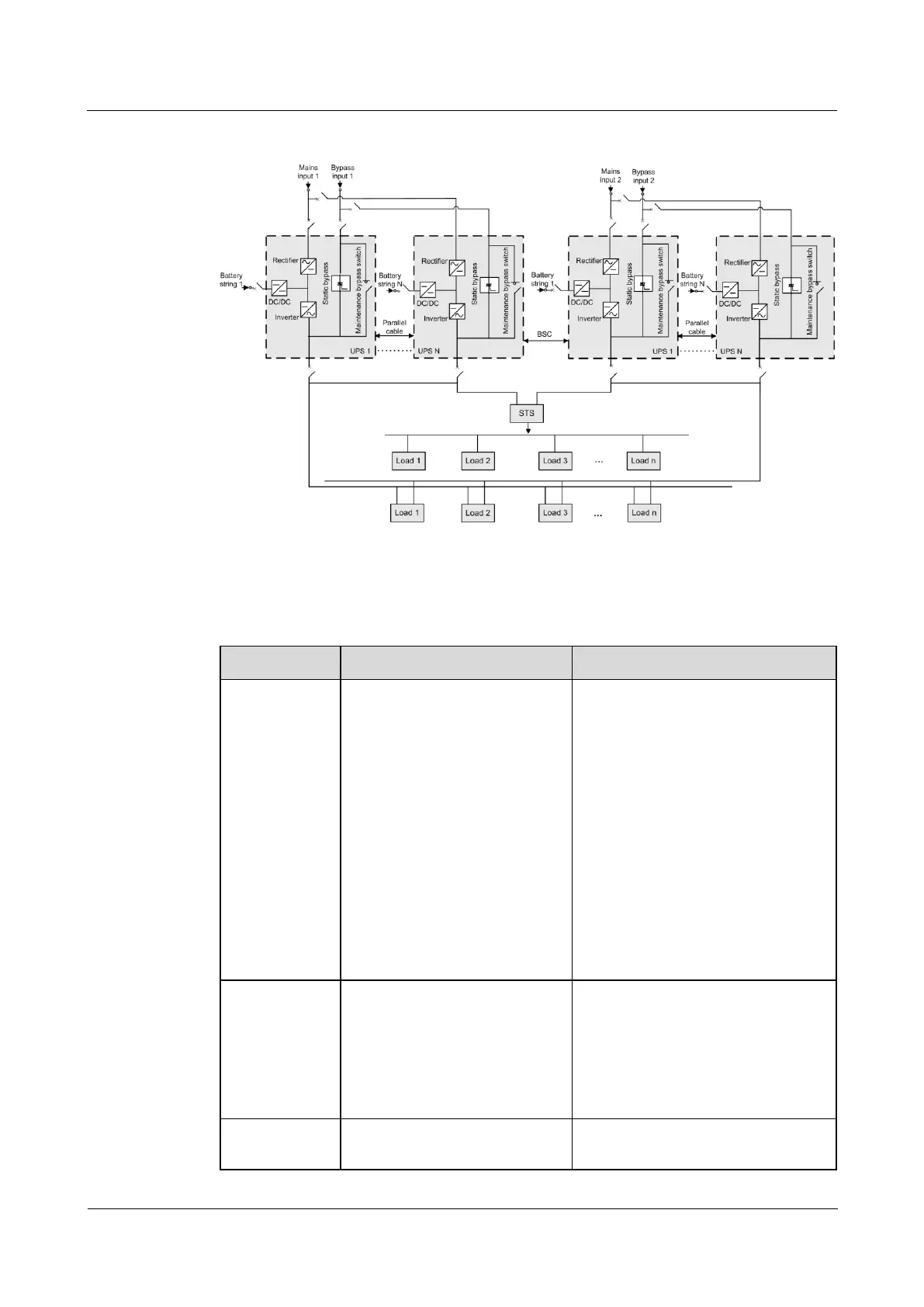

Figure 2-30 Conceptual diagram of a dual-bus system
2.5 Optional Components
Component
Model
Function
BCB box

PDC-0250DC0384BXA

PDC-0400DC0384BXA

PDC-0630DC0384BXA

PDU8000-0125DCV8-BXA
001

PDU8000-0250DCV8-BXA
001

PDU8000-0400DCV8-BXA
001

PDU8000-0630DCV8-BXA
001

PDU8000-0800DCV8-BXA
001
Controls the connection between
battery strings and the UPS, and
supports overload protection,
short-circuit protection, and remote
trip control.
Battery bus bar
(BBB) box

PDU8000-0630DCV8-BGA
001

PDU8000-1250DCV8-BGA
001

PDU8000-2000DCV8-BGA
001
Converges the energy from multiple
battery strings.
Surge
protection box
N/A
Improves the UPS surge protection
capability. For details, see the UPS
