UPS5000-E-(50 kVA-300 kVA)

User Manual (50 kVA Power Modules)

3 Installation

Issue 11 (2019-12-20)

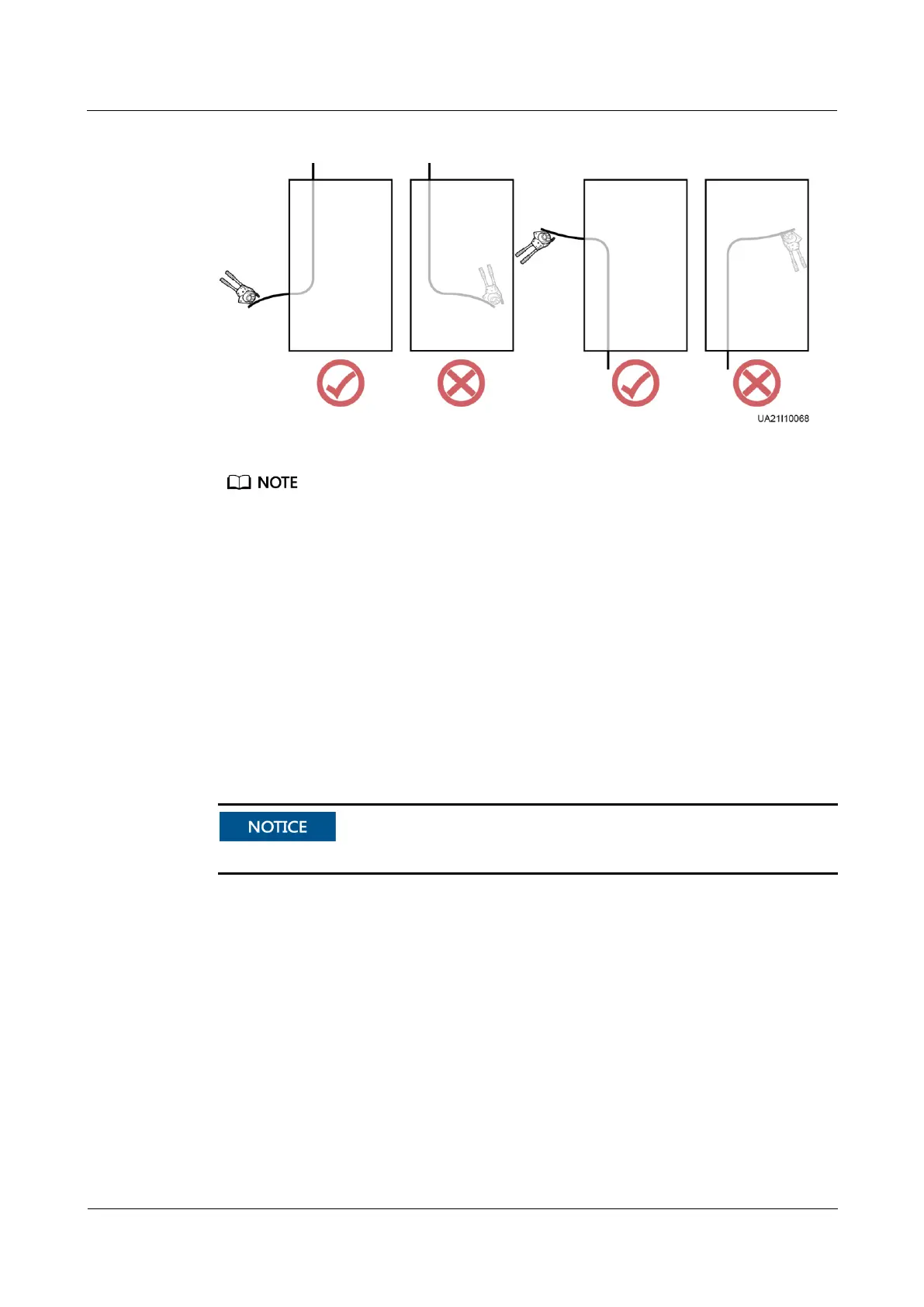

Figure 3-28 Preparing a cable terminal outside the cabinet

Choose an appropriate cabling route based on the actual situation. The figure is for reference only.

Step 4 Connect the cable with a crimped terminal to the corresponding copper bar.

Step 5 Clean foreign matter inside the cabinet.

----End

3.2.5 Routing Cables (UPS5000-E-200K-SM)

3.2.5.1 Routing Cables from the Top

Context

Route cables for the UPS from inside out.

Procedure

Step 1 Ensure the maintenance bypass switch is OFF. Open the front door, and remove the cover

from the power distribution subrack, as shown in Figure 3-29. The positioning of the copper

bars is shown in Figure 3-30
