UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
2 Overview
Copyright © Huawei Technologies Co., Ltd.
29
2.3.2 Power Module
Appearance

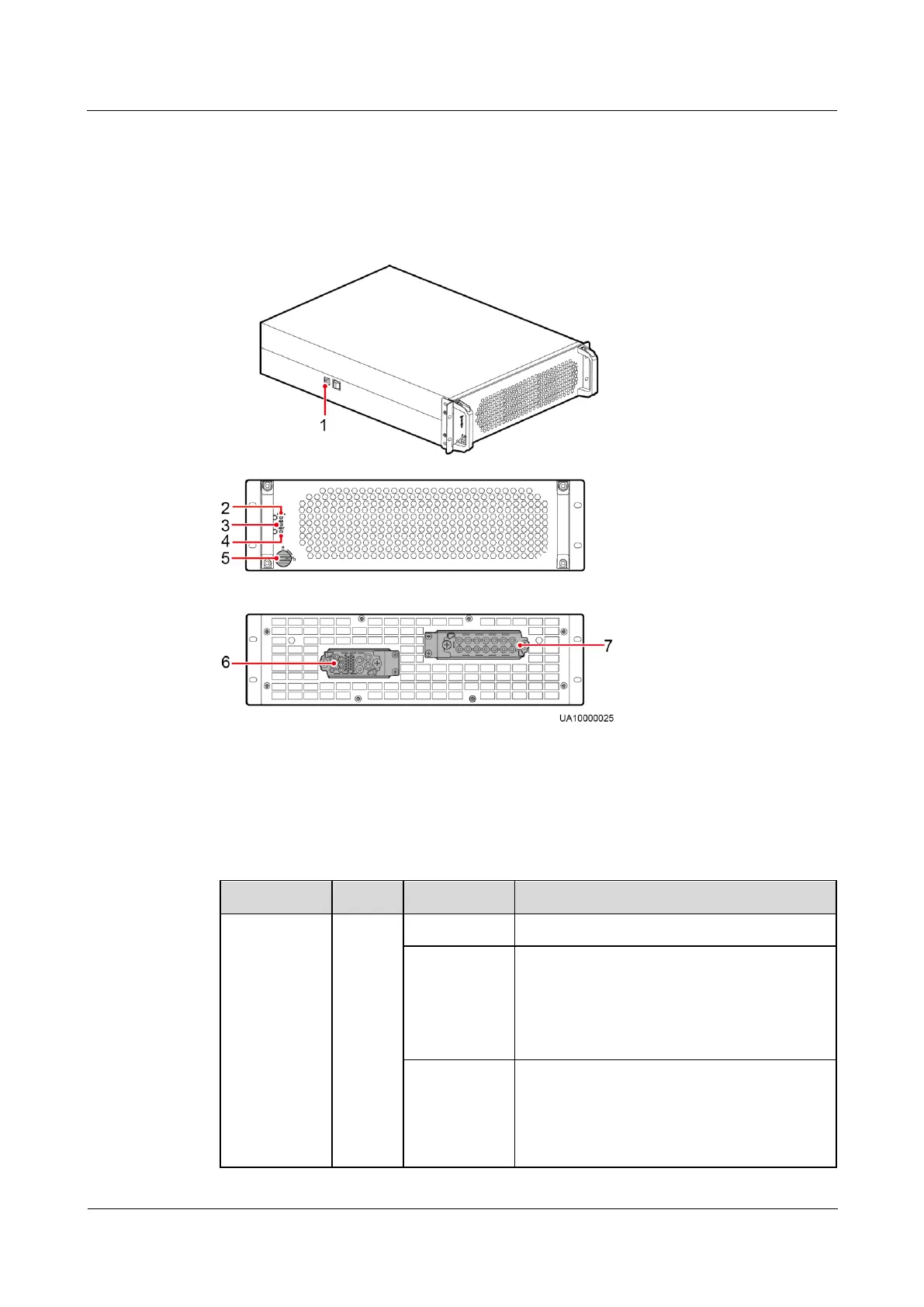

Figure 2-14 Power module
(1) Positioning lock
(2) Run indicator
(3) Alarm indicator
(4) Fault indicator
(5) Ready switch
(6) Output port
(7) Input port
Table 2-2 Indicator description
Indicator
Color
Status
Description
Run indicator
Green
Steady on
The system is working in inverter mode.
Blinking at
long intervals
The inverter is ready and in standby state
(blinking at 0.5 Hz, on for 1s and off for
1s).
The inverter is not started (blinking at 0.2
Hz, on for 2.5s and off for 2.5s).
Blinking at
short intervals
The module is not configured, the inverter or
rectifier ARM software is being upgraded, or
the inverter FPGA software is being upgraded
(blinking at 4 Hz, on for 0.125s and off for
0.125s).
