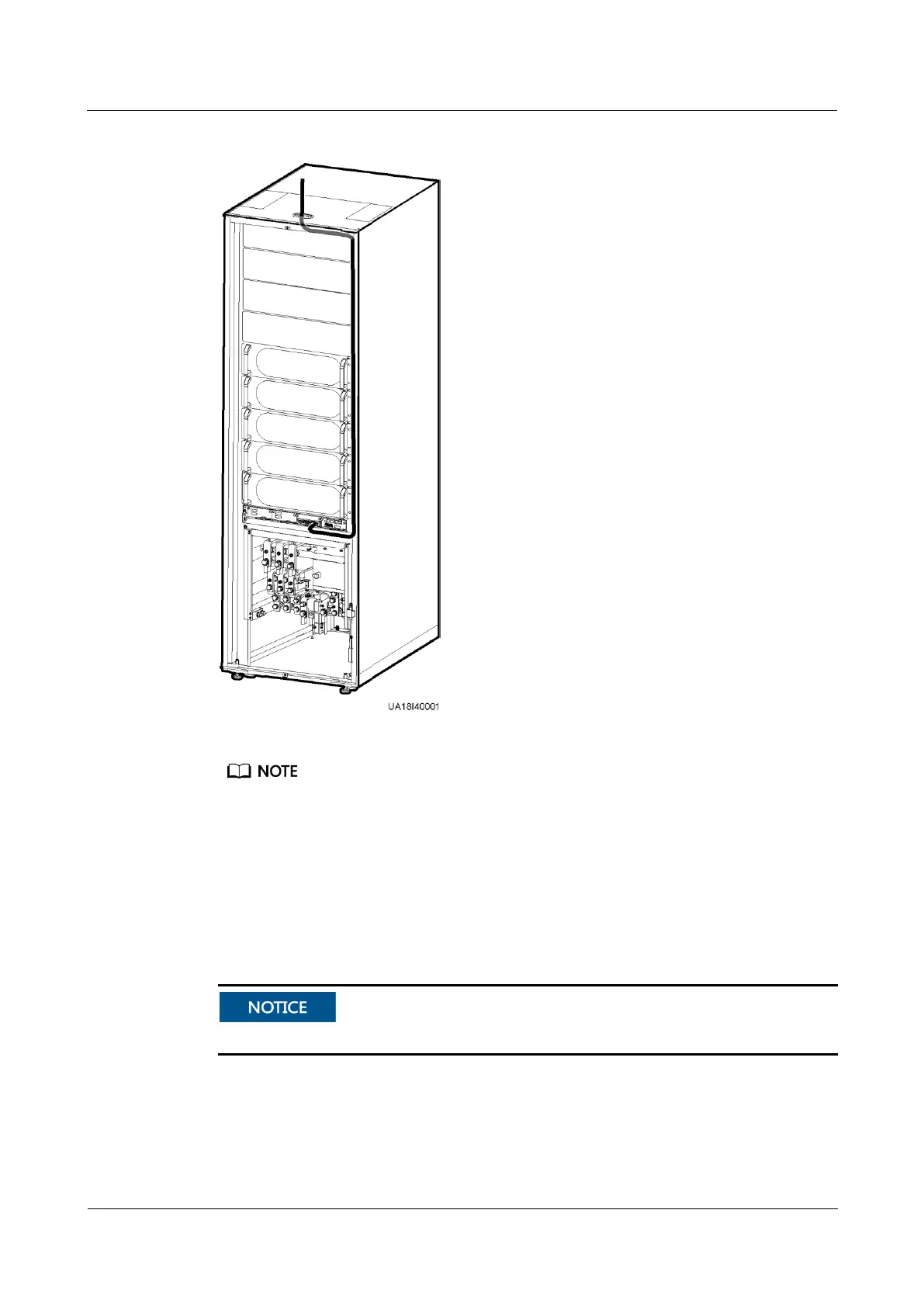

Figure 3-36 Connecting signal cables
The number and colors of signal cables in Figure 3-36 are for reference only.
----End
3.2.5.2 Routing Cables from the Bottom
Context
Route cables for the UPS from inside out.
Procedure
Step 1 Open the front door and remove the cover from the power distribution subrack.
Step 2 Determine the cabling mode.
To Next Page
