3.2.9 Routing Cables (UPS5000-E-300K-SMT)
Context
Route cables for the UPS from inside out.
Procedure
Step 1 Ensure the maintenance bypass switch is OFF. Open the front door and remove the cover
from the power distribution subrack, as shown in Figure 3-80.

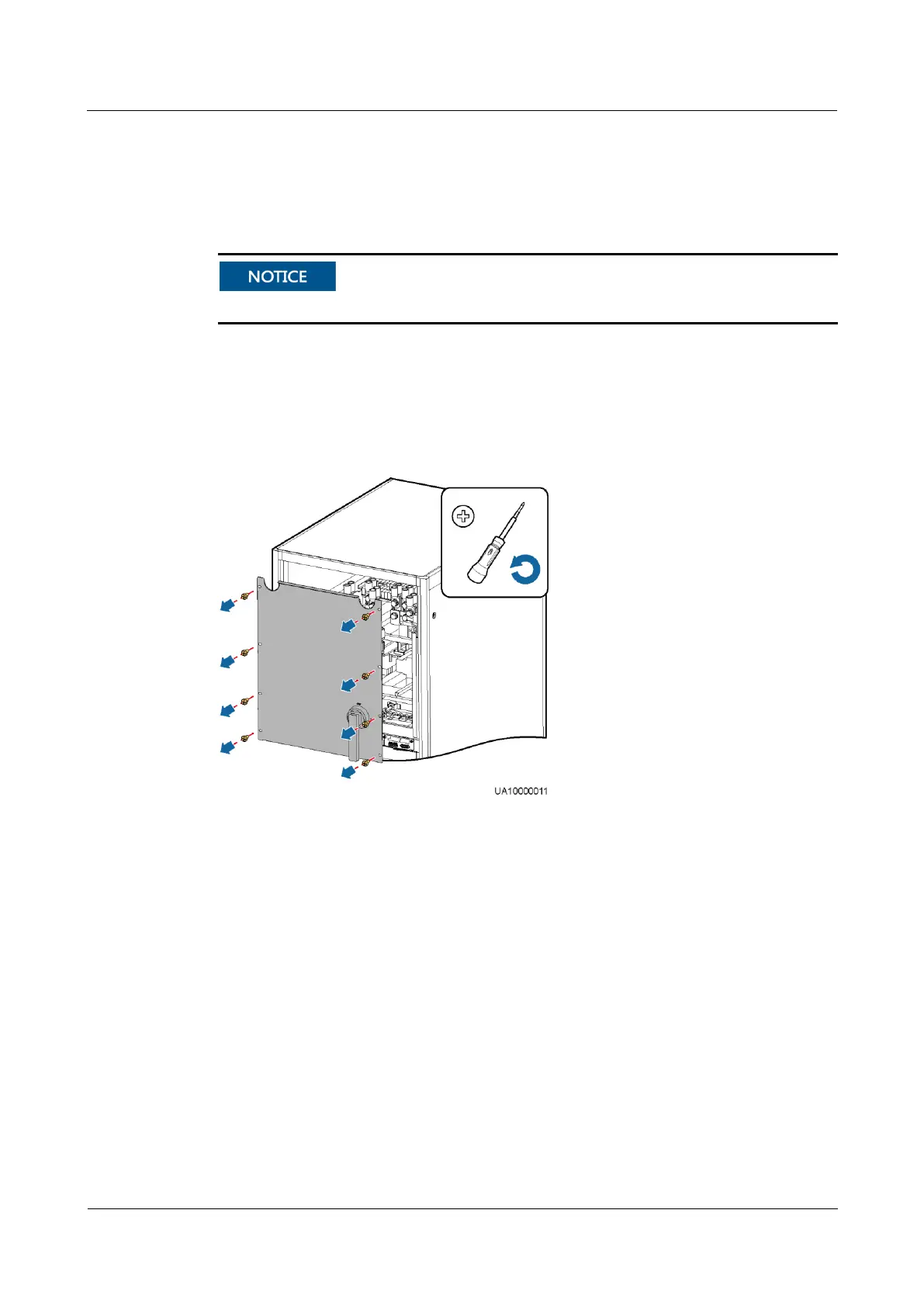

Figure 3-80 Removing the cover
