Area
Function
date and time, USB flash drive status, and buzzer status.
2
Alarm bar
Displays active alarms in a scrolling list and the number of
active alarms based on severity. Tap the alarm icon area to
open the active alarm page.
3
Information area
Displays the power flow as well as key information such as
load and battery information. Tap the Bypass, Mains,
Battery, and Load icons to view details.
Table 4-2 describes the functions of common buttons.
Table 4-2 Functions of common buttons
Button
Function
Returns to the main screen.
Scrolls the page down.
Scrolls the page up.
Returns to the upper-level menu.
Logs a user out.
4.1.2 System Info Screen

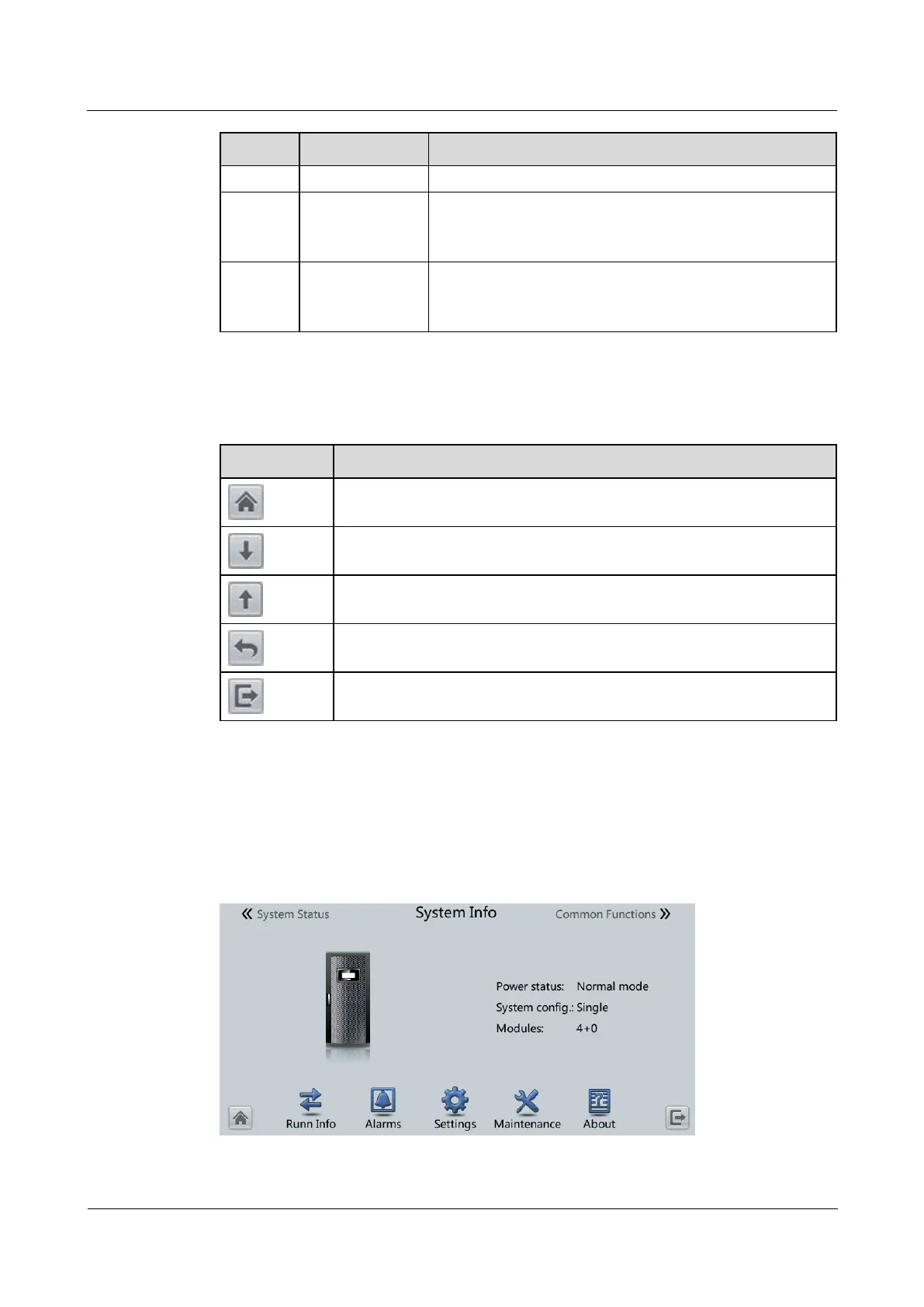

On the main screen, tap System Info. The System Info screen is displayed, as shown in
Figure 4-2.
Figure 4-2 System Info screen
