UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
3 Installation
Copyright © Huawei Technologies Co., Ltd.
101

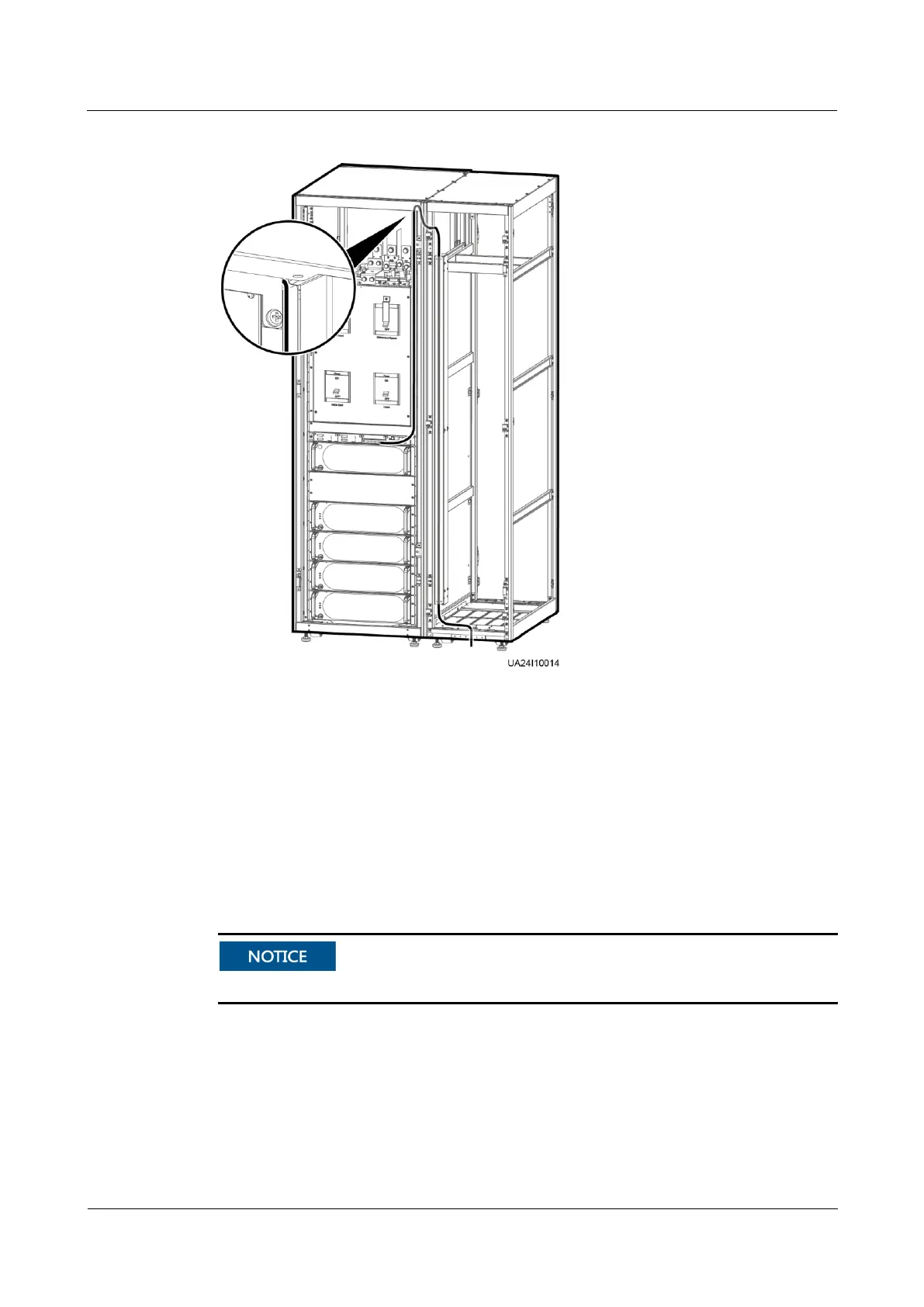

Figure 3-62 Signal cable
Step 14 Install the right cover of the UPS cabinet on the right of the cable entry cabinet, and install
other covers in the original positions.
----End
3.2.7 Routing Cables (UPS5000-E-200K-FM, Isolation Protection)
Context
Route cables for the UPS from inside out.
Procedure
Step 1 Ensure the maintenance bypass switch is OFF. Open the front door, remove the front cover,
and remove covers from the top of the cabinet based on the site requirements.
