Huawei UPS5000-E Series - Testing Batteries; Forced Equalized Charging Test

UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
5 Operations
Issue 11 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
227

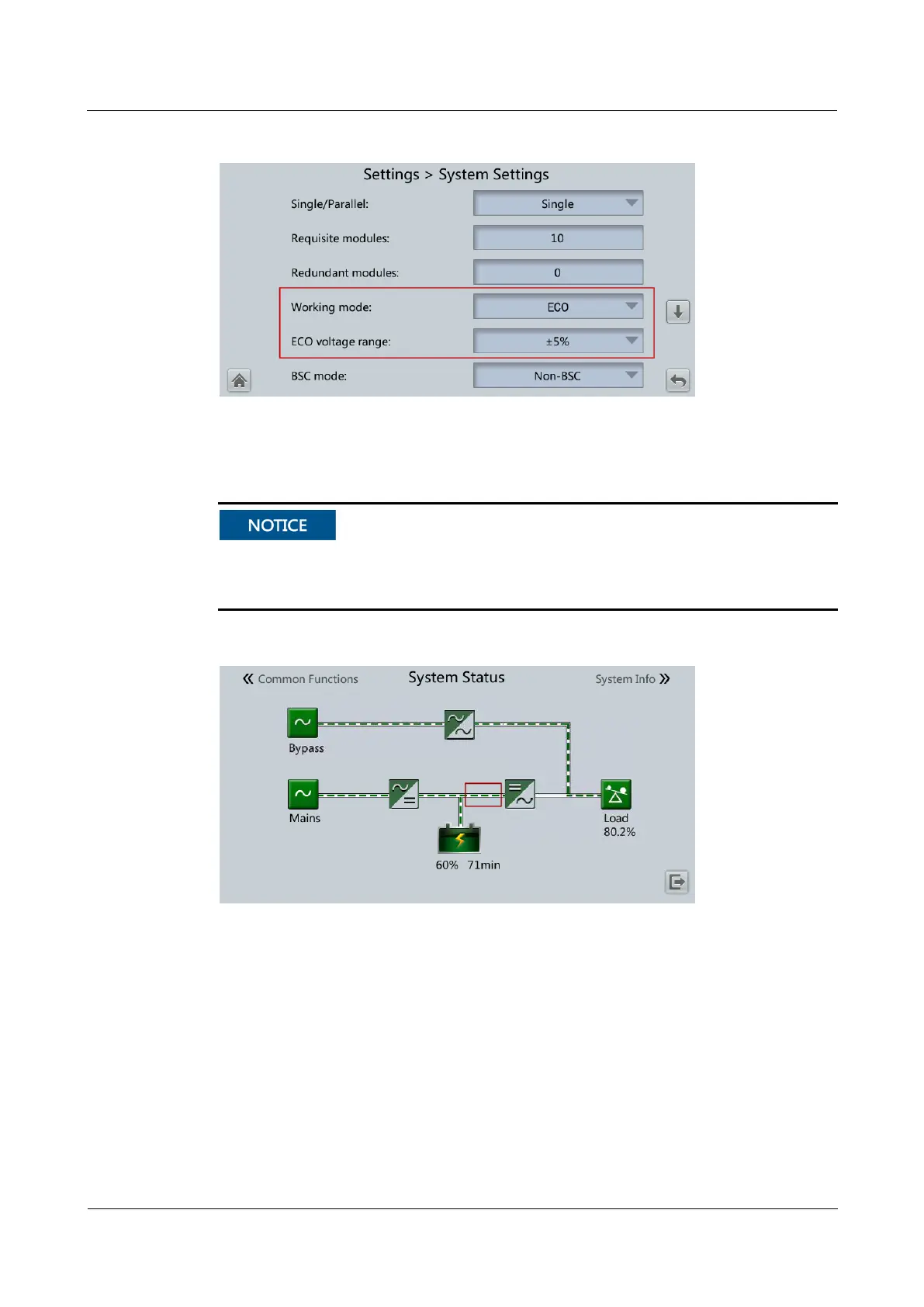

Figure 5-9 ECO parameters
Step 3 (Optional) If you set ECO mode in bypass mode, manually start the UPS inverter.
After the inverter starts, the UPS still works in bypass mode and the inverter is on standby. If
the bypass is not normal, the inverter supplies power immediately. If the inverter is not started,
the UPS may be disconnected.
Figure 5-10 System status in ECO mode
----End
5.6 Testing Batteries
5.6.1 Forced Equalized Charging Test
Context
