UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Copyright © Huawei Technologies Co., Ltd.
Remove small covers for routing cables.

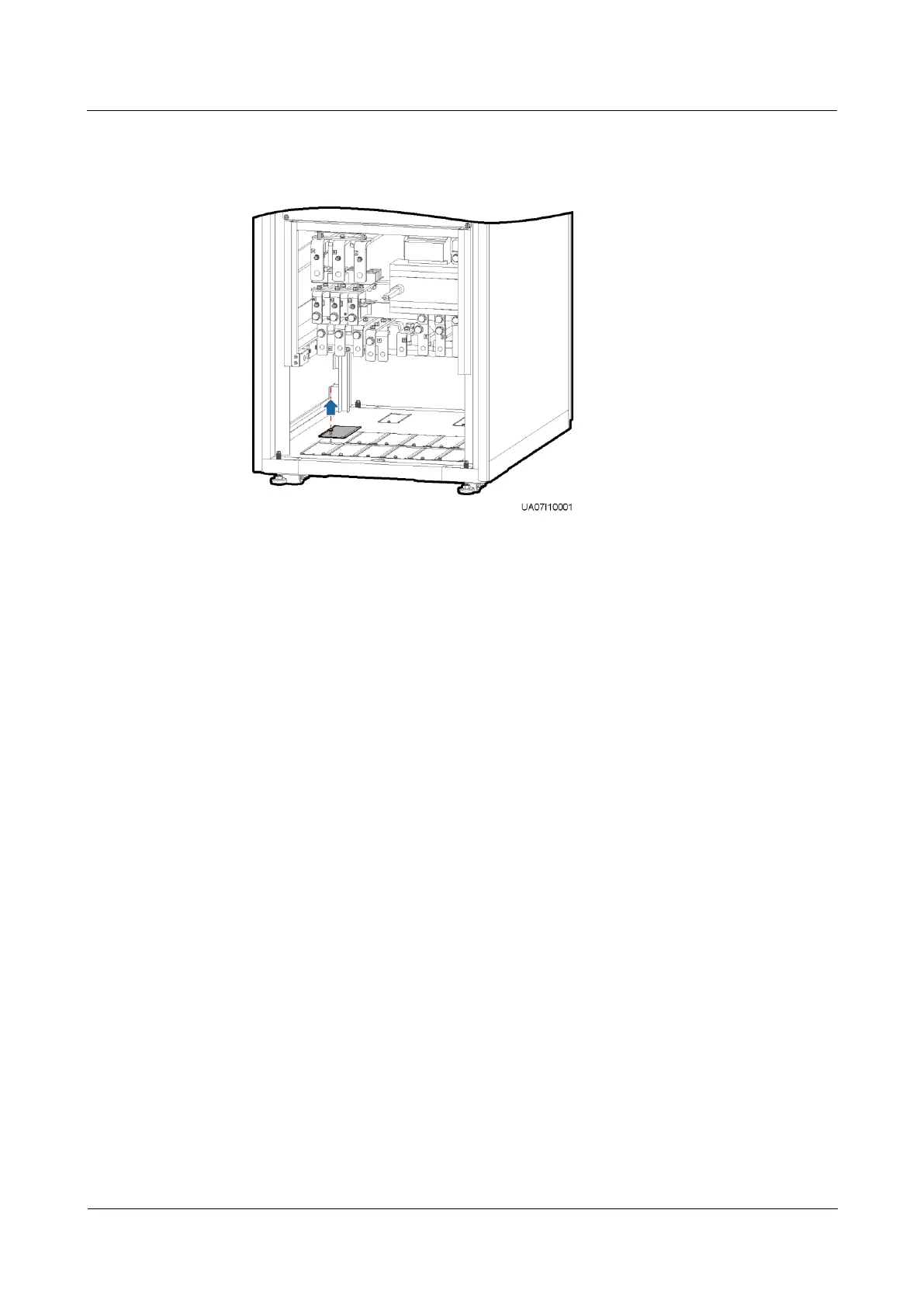

Figure 3-37 Removing small covers from the bottom of the cabinet
Drill holes into the large cover for routing cables.
a. Remove all the cable cover for signal cables and small covers from the bottom.
b. Remove the two large covers from the top of the cabinet, drill holes into them, and
install them to the positions where the small covers were originally.
