UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Copyright © Huawei Technologies Co., Ltd.

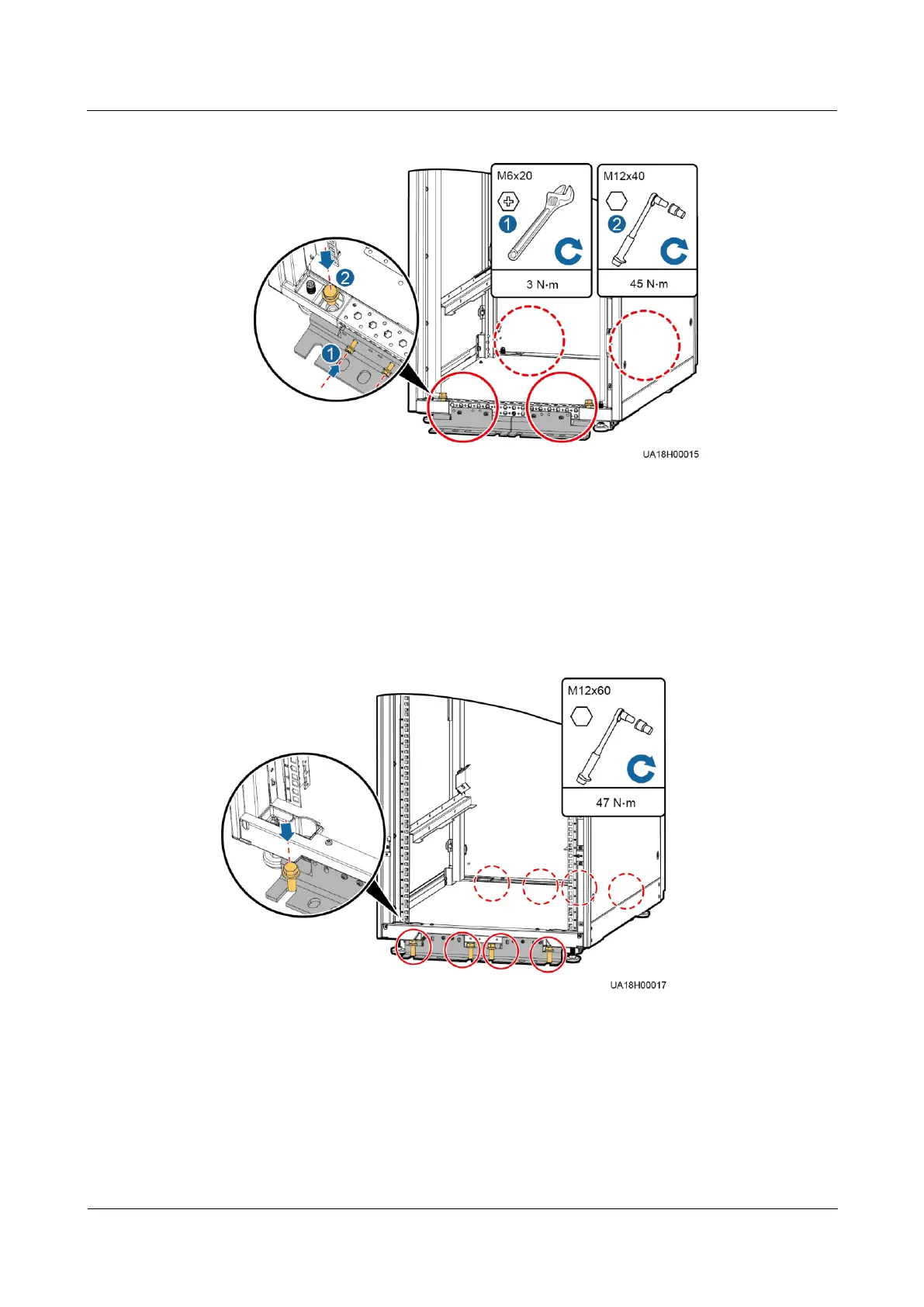

Figure 3-16 Securing the antiseismic kits to the cabinet (without a marking-off template)
Step 4 Reinstall the rear panel.
Step 5 Adjust the cabinet position so that the expansion bolt holes are aligned with the eight holes at
the bottom of the cabinet.
Step 6 Secure antiseismic kits to the floor at both the front and rear of the cabinet by using eight M12
expansion bolts. The positioning is shown in Figure 3-17.
Figure 3-17 Securing the antiseismic kits to the floor
----End
