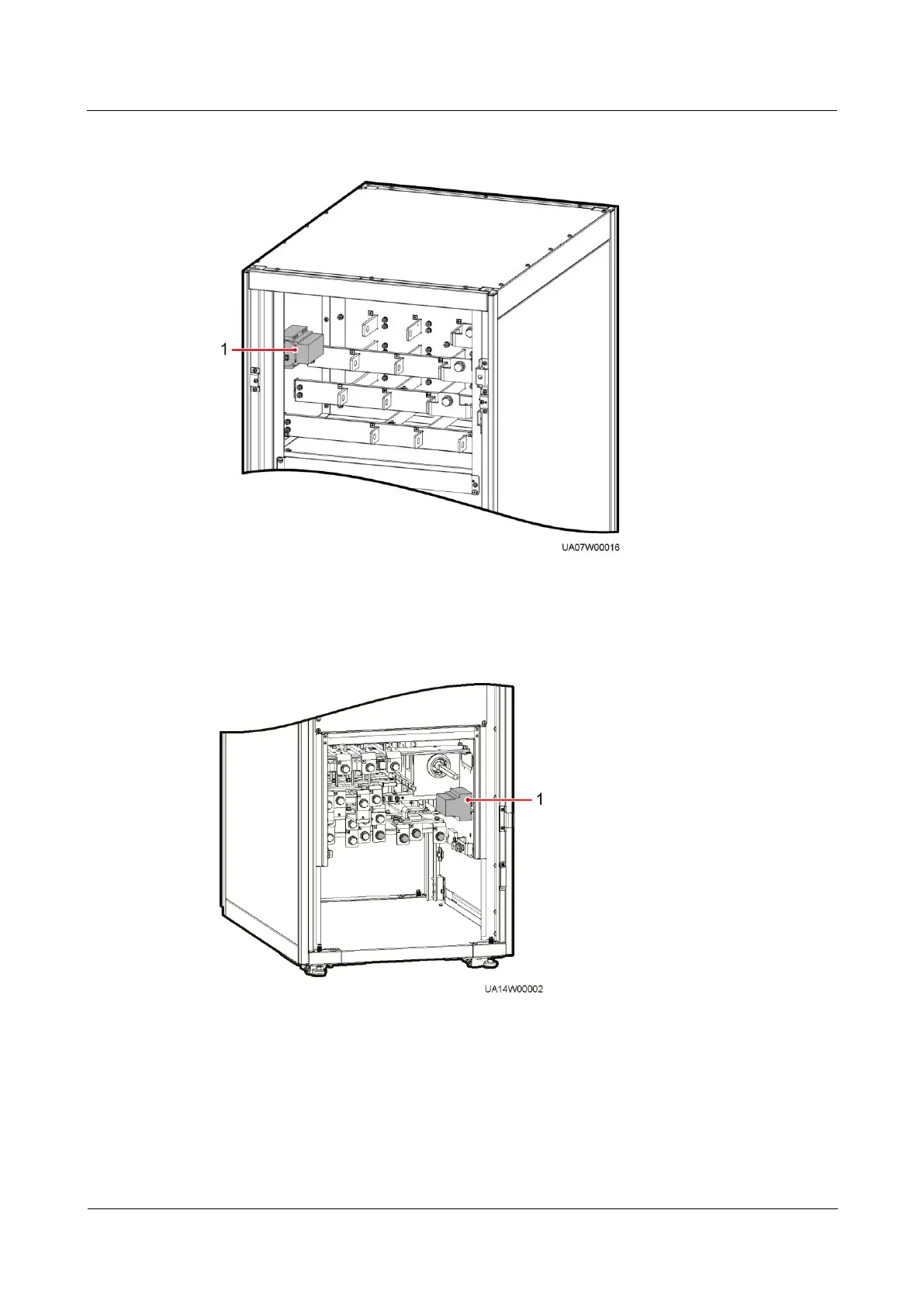

Figure 3-23 Position of a battery grounding failure detector in a UPS5000-E-200K-FM (isolation
protection)
(1) Battery grounding failure detector
Figure 3-24 Position of a battery grounding failure detector in a UPS5000-E-300K-SM
(1) Battery grounding failure detector
