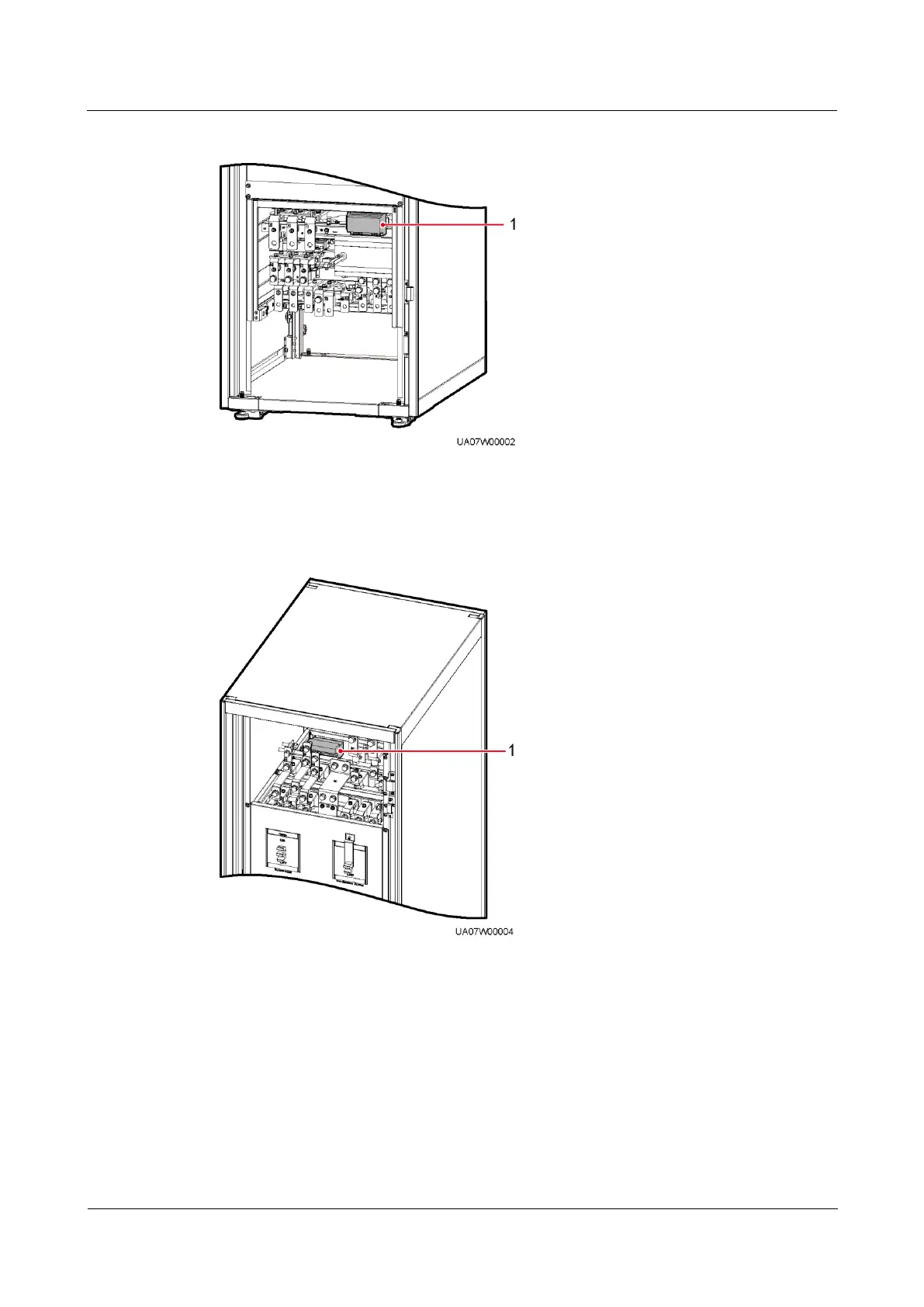

Figure 3-21 Position of a battery grounding failure detector in a UPS5000-E-200K-SM
(1) Battery grounding failure detector
Figure 3-22 Position of a battery grounding failure detector in a UPS5000-E-200K-FM
(1) Battery grounding failure detector
