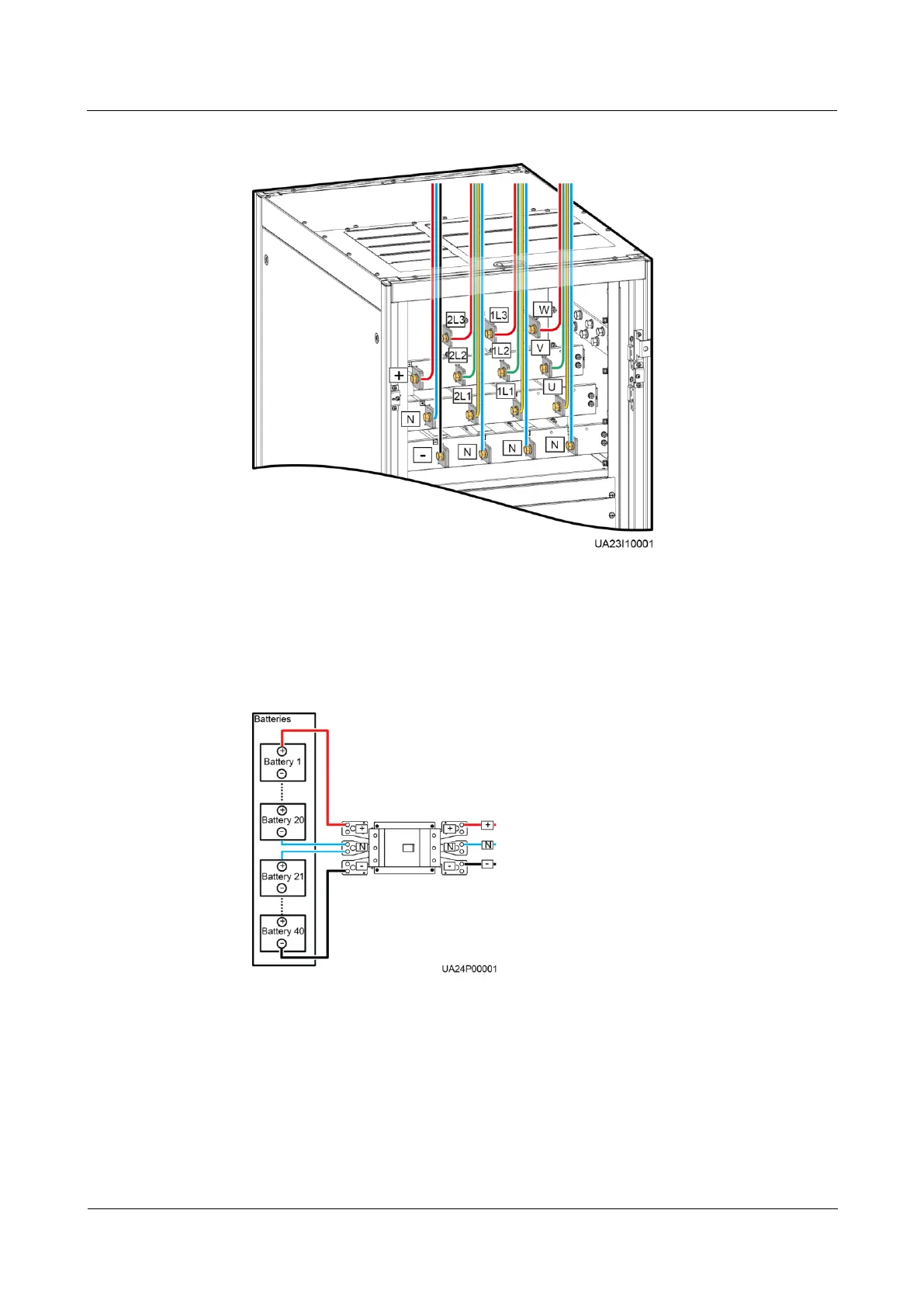

Figure 3-93 Connecting power cables
Route a neutral wire from the middle of the positive and negative battery strings.
The battery neutral wire is routed from the middle of positive and negative battery
strings, each consisting of 20 batteries.
Figure 3-94 Neutral wire
Single mains
For single mains, the copper bar between the mains and bypass input terminals do not
need to be removed, and bypass input cables do not need to be connected.
Step 4 Route signal cables. Bind cables to the cabinet.
