UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
3 Installation
Issue 11 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
137

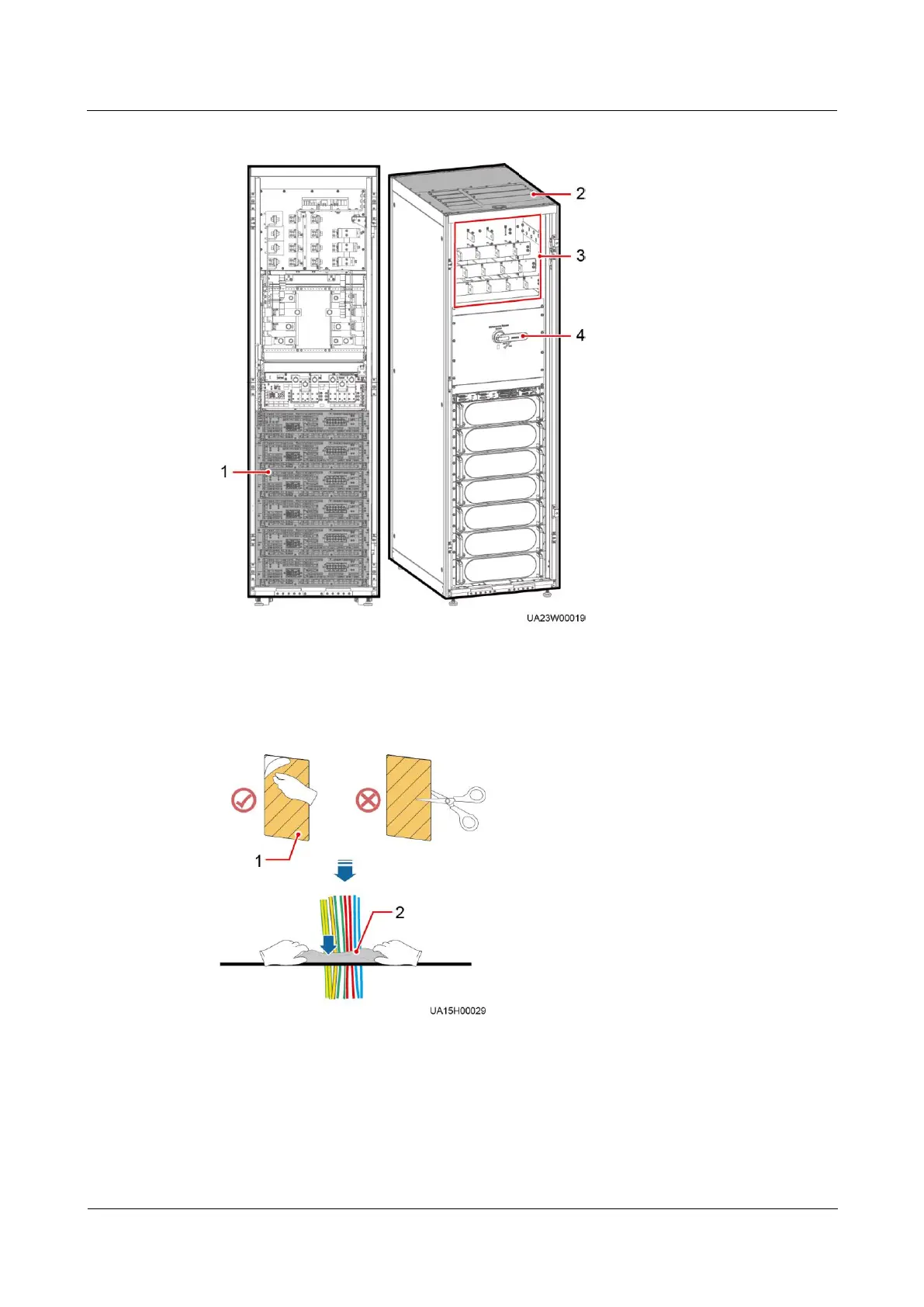

Figure 3-110 Positions for checking foreign matter (UPS5000-E-300K-SMT, isolation protection)
(1) Rear of modules
(2) Cabinet top
(3) Wiring terminal blocks
(4) Switches
Figure 3-111 Fill the holes with sealing putty
(1) Paper protective film
(2) Sealing putty
