UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Copyright © Huawei Technologies Co., Ltd.

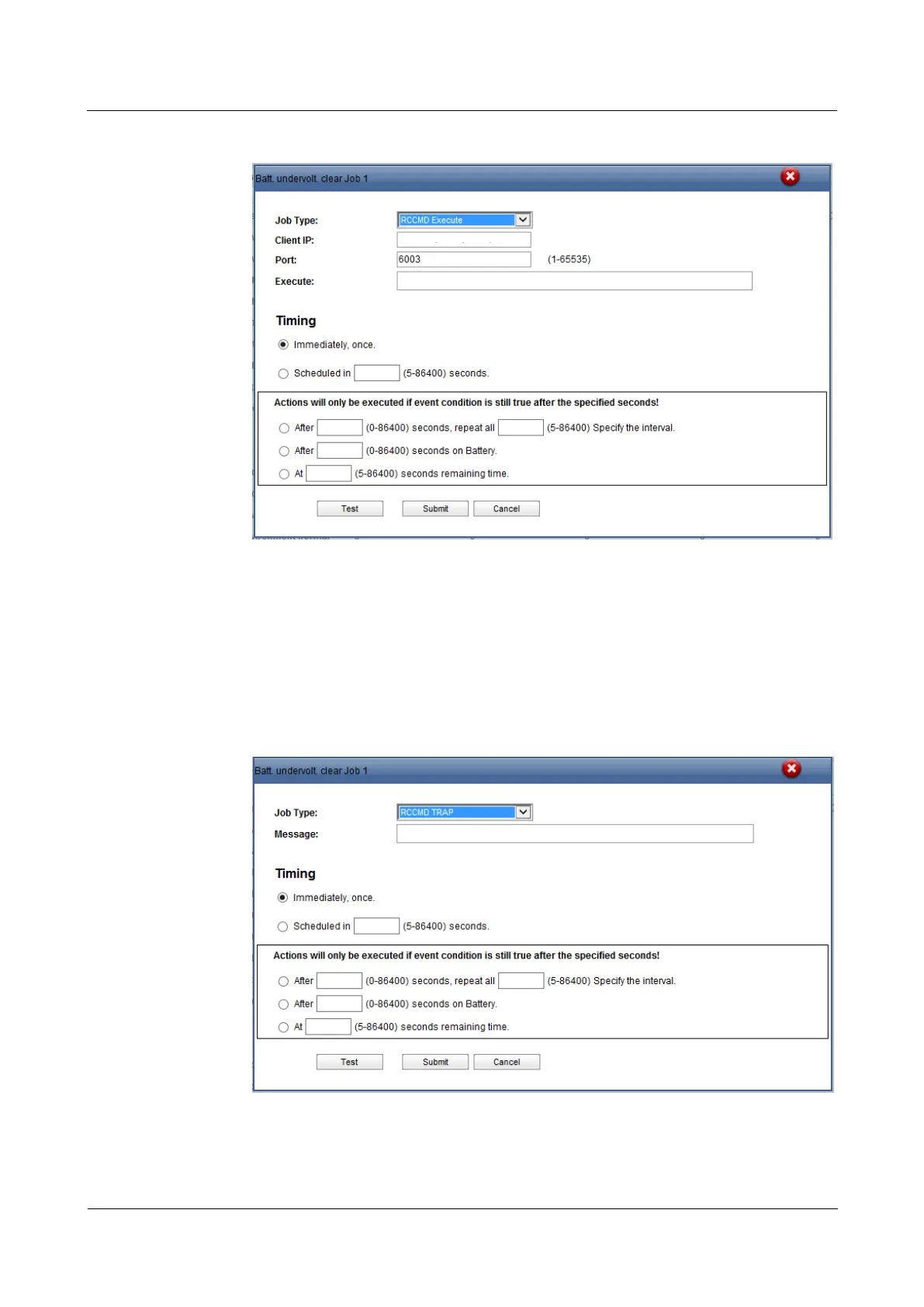

Figure 4-68 RCCMD execute
RCCMD TRAP: When the event happens, the MDU will send the TRAP message to all
connected RCCMD clients based on the sending mechanism.
If you want to define the TRAP message by yourself, you can use the TRAP signal to
display the UPS information. For example, if you enter #INVOLT V, the RCCMD client
will receive the UPS input voltage value (for example, single-phase: 220 V; three-phase
A: 220 V, B: 220 V, C: 220 V). Table 4-26 lists the signal names that can be entered.
Figure 4-69 RCCMD TRAP
