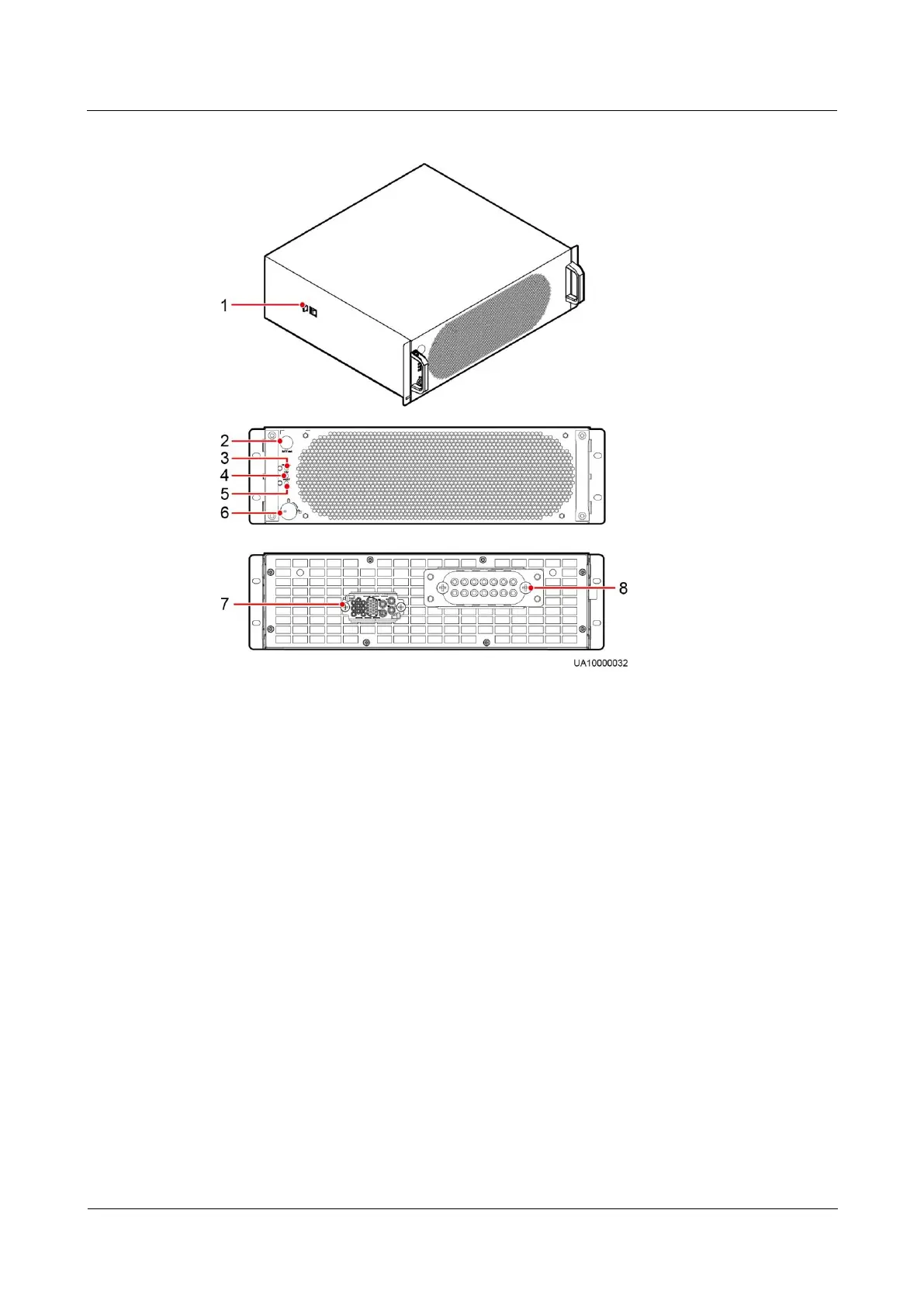

Figure 2-15 Bypass module
(1) Positioning lock
(2) Cold start button
(3) Run indicator
(4) Alarm indicator
(5) Fault indicator
(6) Ready switch
(7) Signal port
(8) Input and output ports
Figure 2-16 shows a bypass module of a 300 kVA UPS.
