UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Copyright © Huawei Technologies Co., Ltd.

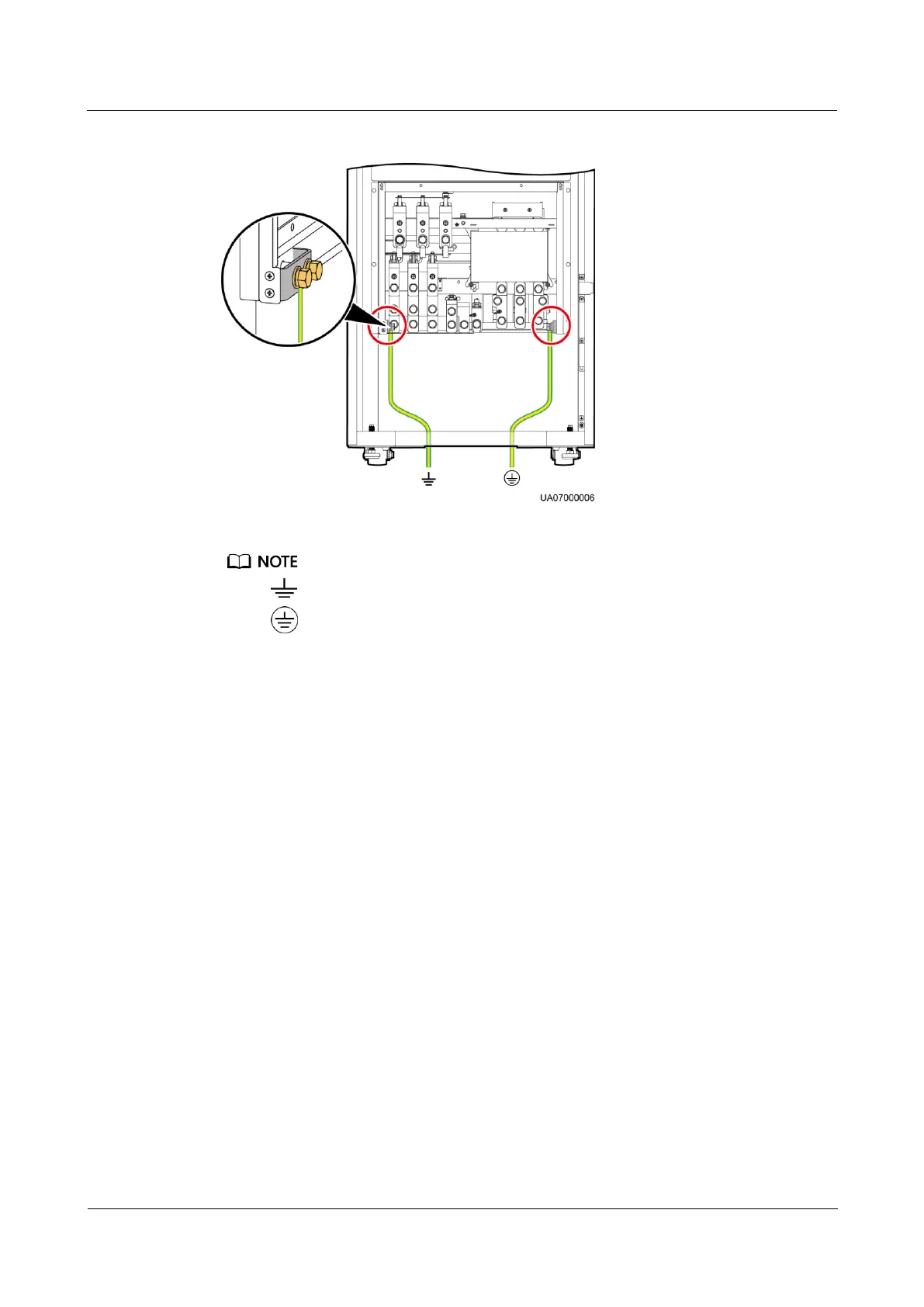

Figure 3-39 Ground cable connection
: Internal equipotential connection
: Protection ground
Step 4 Route power cables.
Dual mains
Remove the copper bars between mains and bypass input terminals.
Figure 3-40 shows power cables routed from the bottom by removing small covers, as an
example.
