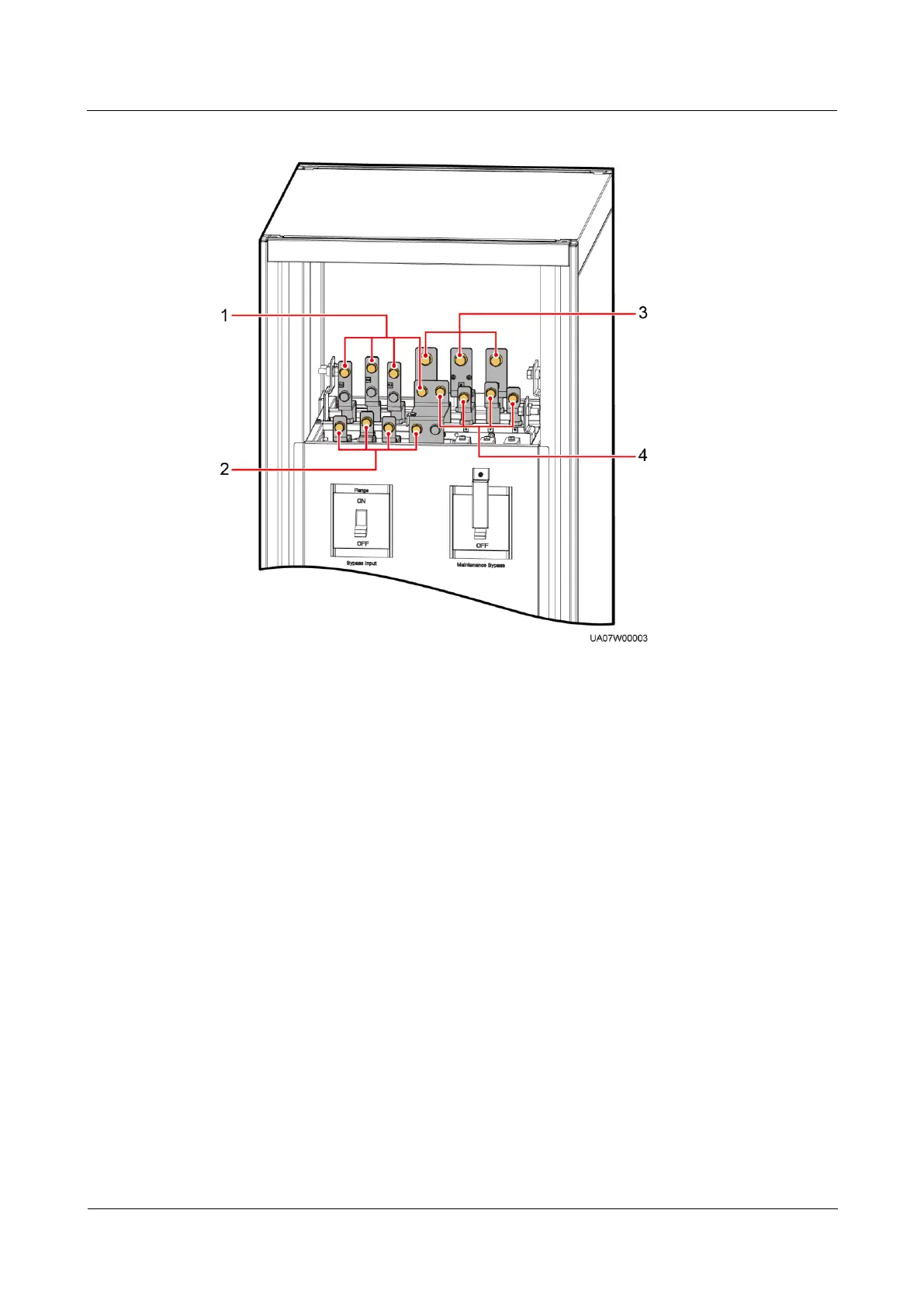

Figure 3-44 Copper bar positions
(1) Mains input terminals (1L1–1L3, N)
(2) Bypass input terminals (2L1–2L3, N)
(3) Battery input terminals (+, N, –)
(4) Output terminals (U, V, W, and N)
Step 2 Determine the cabling mode.

Remove small covers for routing cables.
