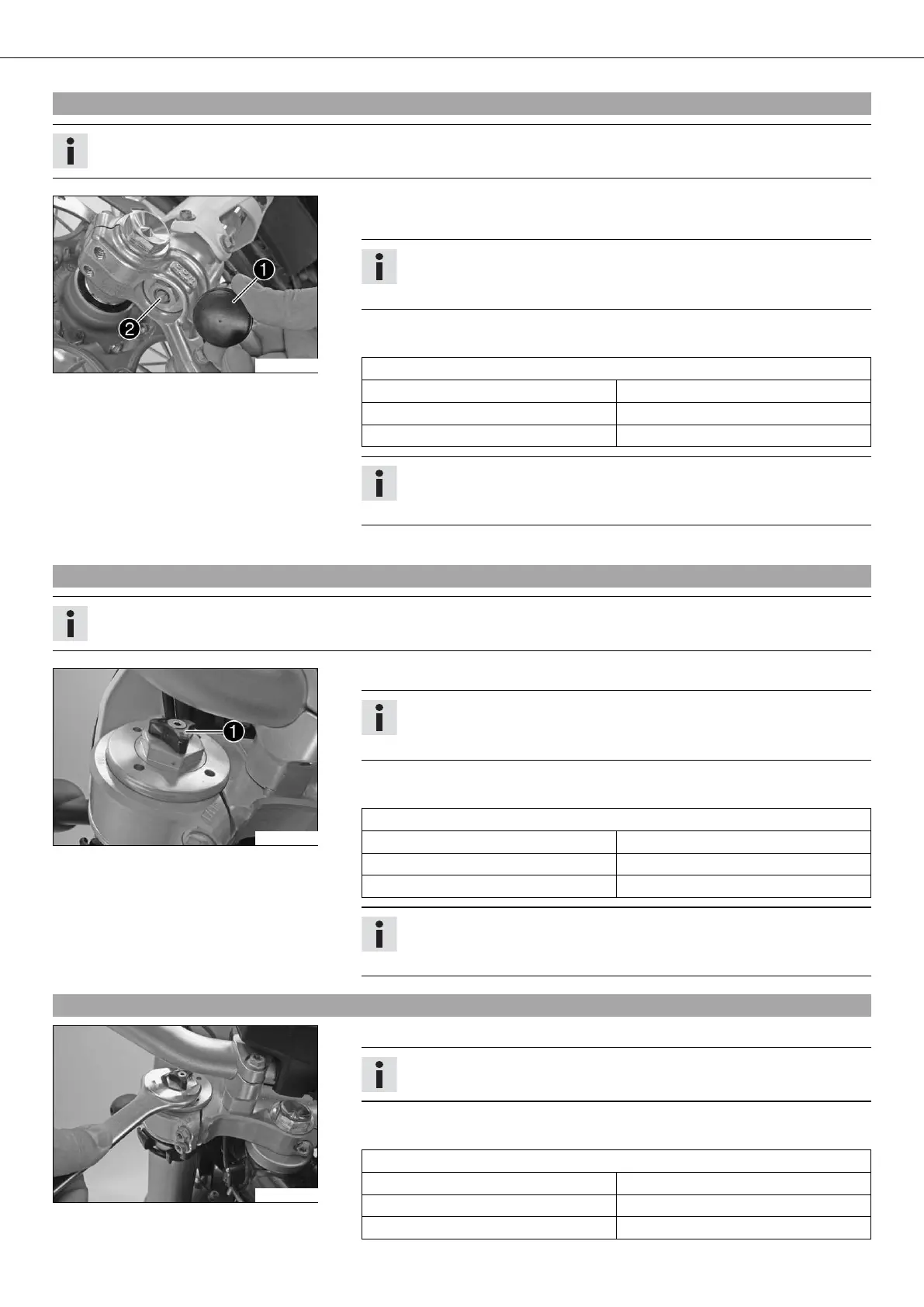

01/FORK, TRIPLE CLAMP 10
5.1Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
100377-10
– Remove protection covers .
– Turn adjusting screws  clockwise until they stop.
Info
Adjusting screws  are located at the bottom end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping
Comfort 26 clicks
Standard 22 clicks
Sport 18 clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.
– Mount protection covers .
5.2Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
100376-10
– Turn adjusting screws  clockwise until they stop.
Info
Adjusting screws  are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 22 clicks
Standard 20 clicks
Sport 18 clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.
5.3Adjusting the spring preload of the fork
100378-01
– Turn the adjusting screws counterclockwise until they stop.
Info
Make the same adjustment on both fork legs.
– Turn back clockwise the number of turns corresponding to the fork type.
Guideline
Spring preload - Preload Adjuster
Comfort 0 turn
Standard 2 turns
Sport 4 turns
