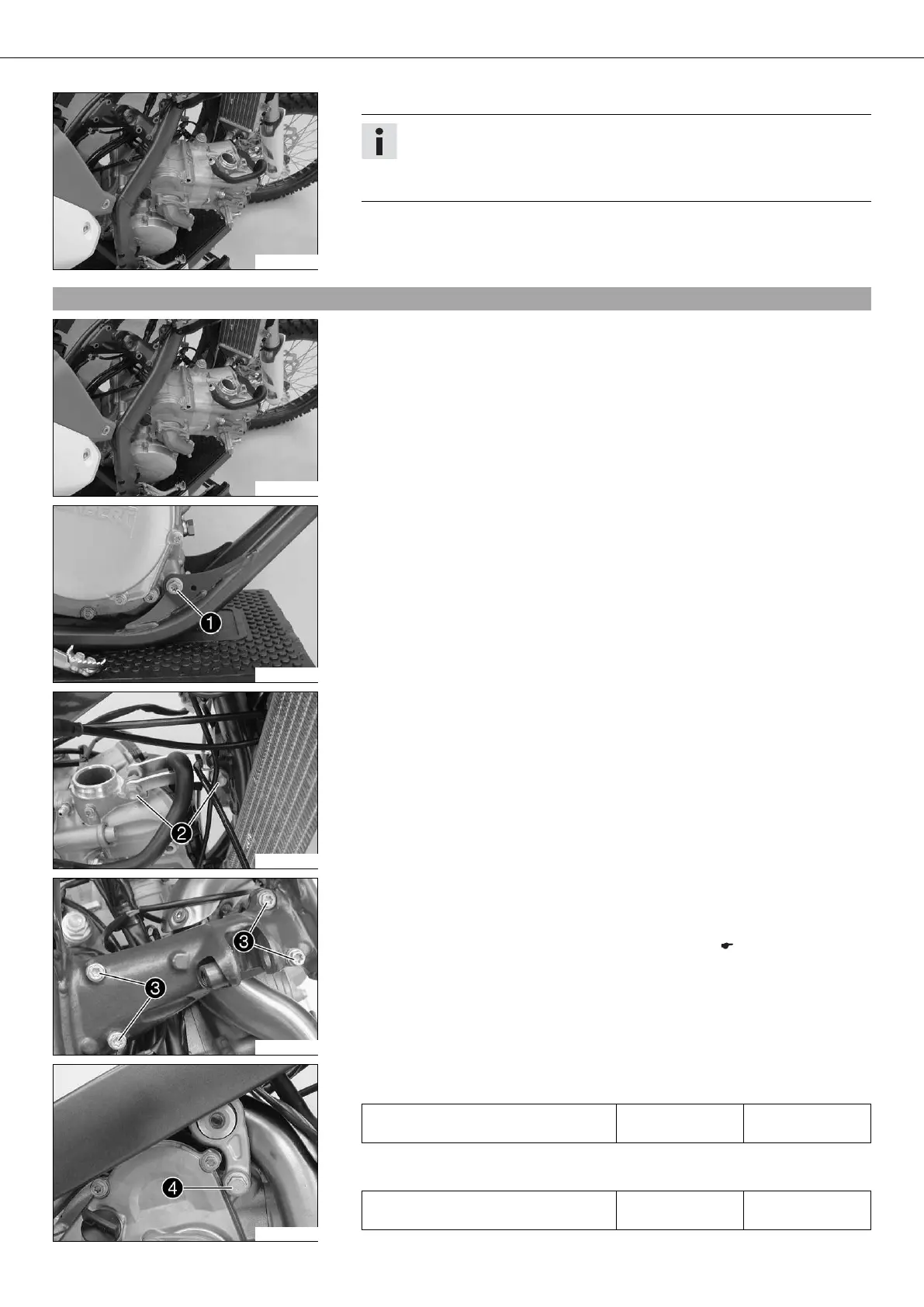

30/ENGINE 94
300700-10
– Lift out the engine from the side.
Info
It is recommended to have assistance for performing this step.
Ensure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments against damage.
17.2Installing the engine
300700-10
– Position the engine in the frame.
300699-11
– Mount screw with the sleeves but do not tighten yet.
300698-11
– Position the engine braces and washers.
– Mount screws with the nuts but do not tighten yet.
300679-11
– Slip in the exhaust pipe.
– Position both engine mounting brackets.
– Mount screws but do not tighten yet.
– Install the swingarm, with shock absorber and rear wheel. ( p. 52)
300680-11
– Mount and tighten screw with the nuts.
Guideline
Remaining nuts, chassis M10 50 Nm
(36.9 lbf ft)
– Tighten screws .
Guideline
Engine carrying screw M10 60 Nm
(44.3 lbf ft)
